New Product

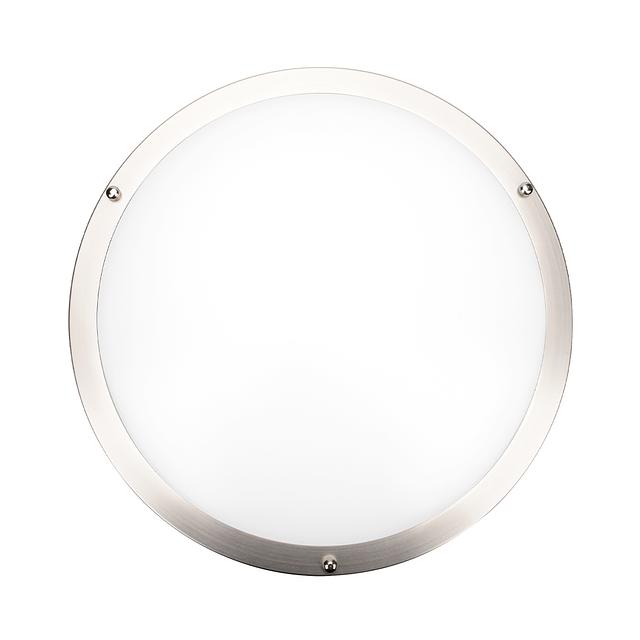

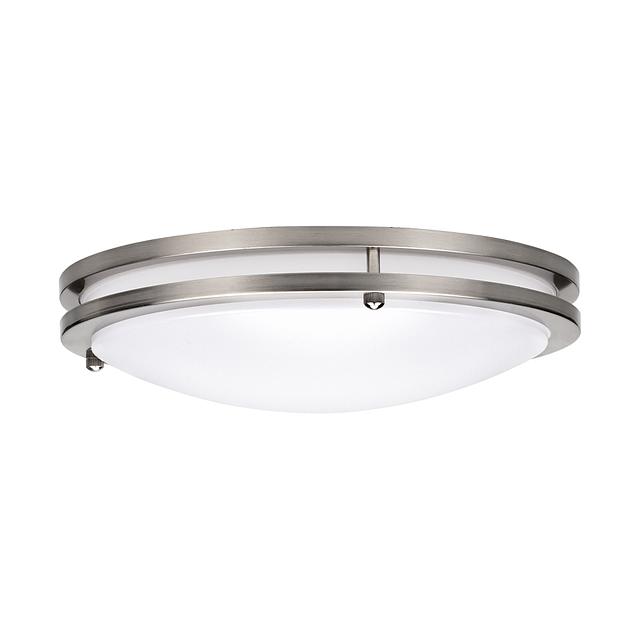

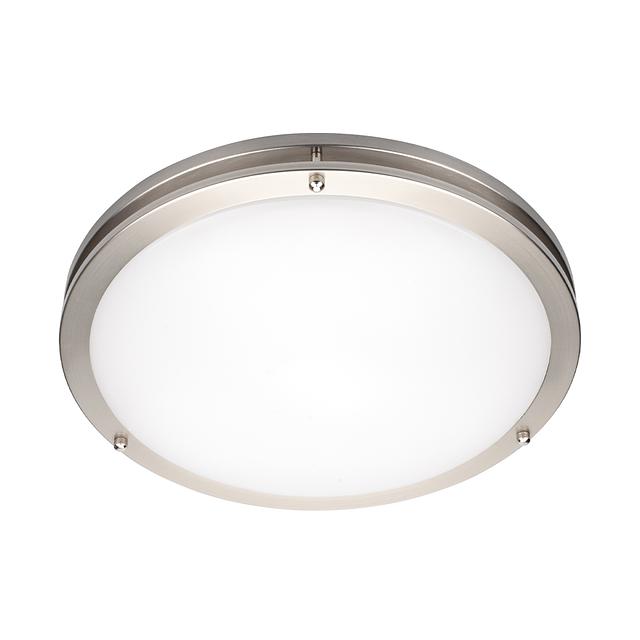

Surface Mount Double Ring
The SMD-DR Surface Mount Double Ring features cold-rolled steel plates and rings with a satin nickel finish, offered in 10", 12", 14", and 16" sizes. Engineered for secure installation to standard junction boxes with enhanced durability and heat dissipation. Durable PMMA material lens with high transmittance and UV protection. Each model features five field-selectable CCT options from 2700K to 5000K, 120V input with TRIAC dimming, and 80+ CRI standard.
Resources
CONSTRUCTION
Offered in 10”, 12”, 14”, and 16” sizes, the fixture features cold rolled steel plates
and rings. Designed for surface mounting. Engineered for secure installation

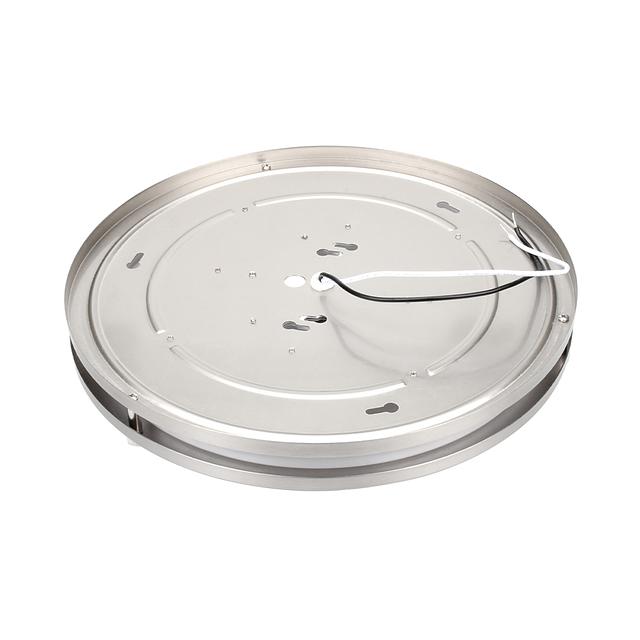

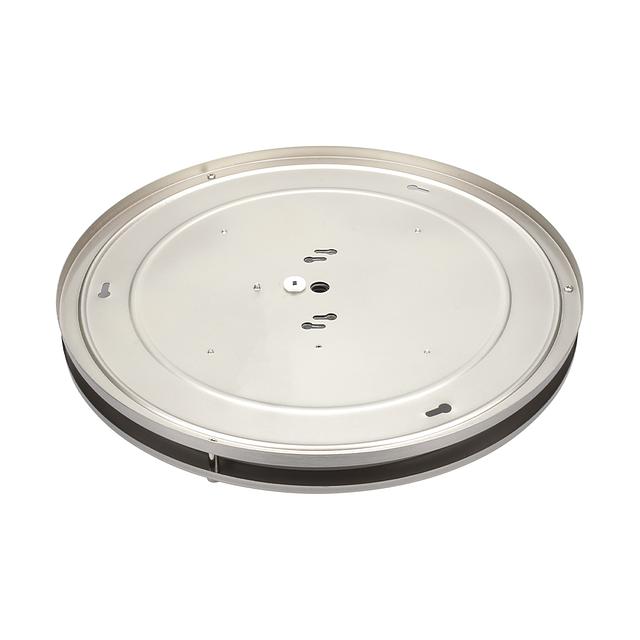

to standard junction boxes with enhanced durability and heat dissipation.
OPTICS
Durable PMMA material lens with high transmittance, with UV protection for
outdoor application.
ELECTRICAL
80+ CRI.
120V Input, Triac Dimming.
5 CCT selectable light engine from 2700~5000K.
MOUNTING
Surface Mount.
STANDARD FINISH
Satin Nickel Finish.
CERTIFICATION
Suitable for damp location.
Meets Buy America Act requirements.
DLC Listed.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
FCC Certified.
Energy Star Certified.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Offered in 10”, 12”, 14”, and 16” sizes, the fixture features cold rolled steel plates
and rings. Designed for surface mounting. Engineered for secure installation
to standard junction boxes with enhanced durability and heat dissipation.
OPTICS
Durable PMMA material lens with high transmittance, with UV protection for
outdoor application.
ELECTRICAL
80+ CRI.
120V Input, Triac Dimming.
5 CCT selectable light engine from 2700~5000K.
MOUNTING
Surface Mount.
STANDARD FINISH
Satin Nickel Finish.
CERTIFICATION
Suitable for damp location.
Meets Buy America Act requirements.
DLC Listed.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
FCC Certified.
Energy Star Certified.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Beam Angle
- 120
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80
Color / Finish
- Satin Nickel
Dimming Protocol
- Triac
Listings
- ETLus
Lumens
- 960
- 1400
- 1820
- 2520
Ratings & Compliance
- Buy American Act (BAA)
- Damp
- Energy Star
Trim Finish
- Satin Nickel
Voltage
- 120 V
Warranty
- 5 yr
Watts
- 16
- 20
- 26
- 36
