SMD-OP
SMD-OP 1K.2.jpg
SMD-OP 1K.3.jpgSMD-OP
New Product

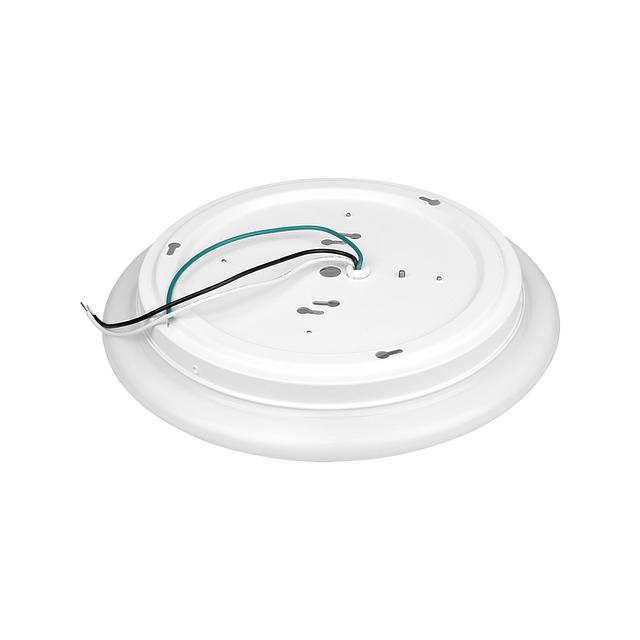

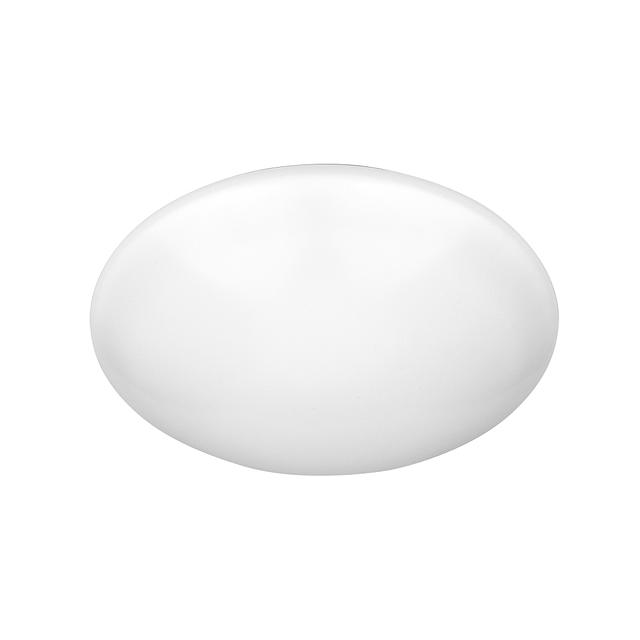

Surface Mount Opal
The SMD-OP Surface Mount Opal features a high-lumen transmission cover with enhanced durability and heat dissipation, available in 11" and 14" sizes. Engineered for secure installation to standard junction boxes with enhanced durability and heat dissipation. Durable PMMA material lens is gasketed and sealed to prevent the splash of water or dust from entry. Each model features five field-selectable CCT options from 2700K to 5000K, 120V input with TRIAC dimming, and 80+ CRI standard.
Resources
CONSTRUCTION
Offered in 11” and 14” sizes, the fixture features a high lumen transmission cover
and is designed for surface mounting. Engineered for secure installation
to standard junction boxes with enhanced durability and heat dissipation.
OPTICS
Durable PMMA lens, gasketed and sealed to prevent splash of water or dust
from entry.
ELECTRICAL
80+ CRI.
120V Input, Triac Dimming.
5 CCT selectable light engine from 2700~5000K.
MOUNTING
Surface Mount.
STANDARD FINISH
White Finish.
CERTIFICATION
Suitable for damp location.
Meets Buy America Act requirements.
DLC Listed.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
FCC Certified.
Energy Star Certified.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Offered in 11” and 14” sizes, the fixture features a high lumen transmission cover
and is designed for surface mounting. Engineered for secure installation
to standard junction boxes with enhanced durability and heat dissipation.
OPTICS
Durable PMMA lens, gasketed and sealed to prevent splash of water or dust
from entry.
ELECTRICAL
80+ CRI.
120V Input, Triac Dimming.
5 CCT selectable light engine from 2700~5000K.
MOUNTING
Surface Mount.
STANDARD FINISH
White Finish.
CERTIFICATION
Suitable for damp location.
Meets Buy America Act requirements.
DLC Listed.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
FCC Certified.
Energy Star Certified.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Beam Angle
- 120
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80
Color / Finish
- White
Dimming Protocol
- Triac
Listings
- ETLus
Lumens
- 1400
- 1820
Ratings & Compliance
- Buy American Act (BAA)
- Damp
- Energy Star
Voltage
- 120 V
Warranty
- 5 yr
Watts
- 20
- 26
