Wedge

CONSTRUCTION

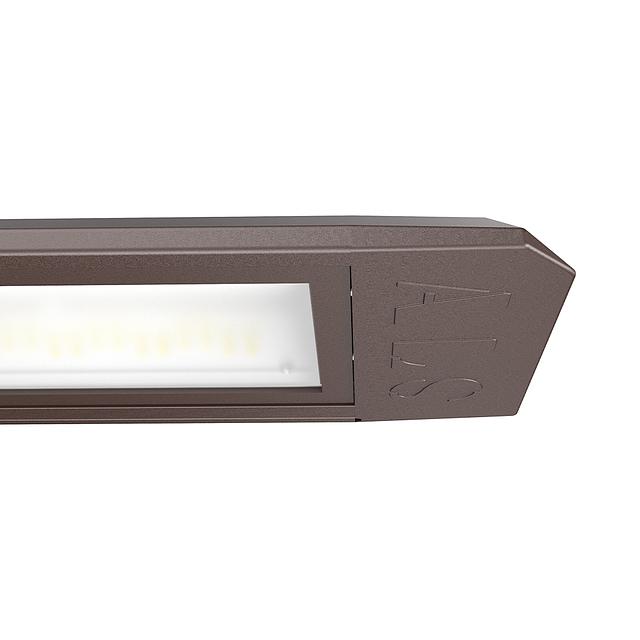

Rugged extruded aluminum housing for outdoor use, conducts LED heat to optimize
performance and extend lifespan. Full-cutoff, fully shielded design minimizes glare
and upward light trespass. Completely sealed housing, providing protection against
moisture and environmental contaminants. Features a vandal & UV-proof frosted
polycarbonate lens with IK08 impact rating and a cast aluminum end-capped
housing with an IK10 impact rating.

OPTICS
Full cut-off distribution conform to dark sky requirement.
Vandal & UV-proof frosted polycarbonate lens provides smooth, uniform light
distribution. CCT selectable light engine available with 3000K ~ 5000K.

ELECTRICAL
80+ CRI LED.
Universal 120-347V AC input voltage.

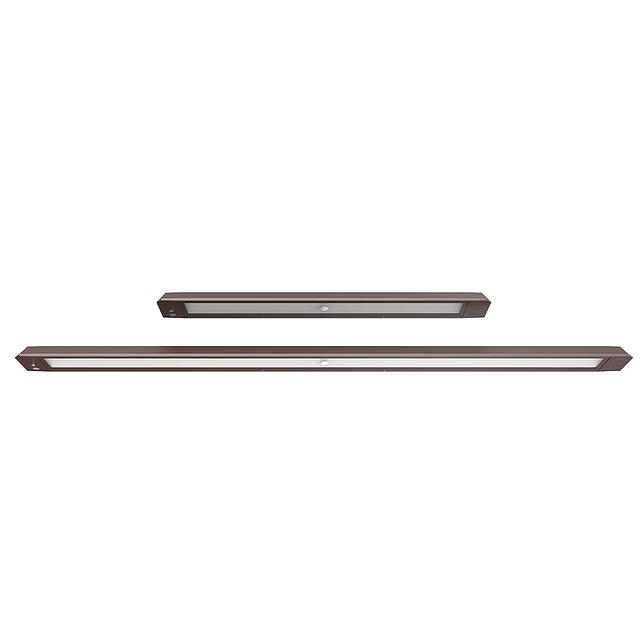

WDG-10 output selectable available with 5W / 8W / 10W / 13W.
WDG-25 output selectable available with 10W / 15W / 20W / 25W.
WDG-50 output selectable available with 20W / 30W / 40W / 50W.
-40°C up to 40°C (-40°F up to 104°F) maximum operating temperature.
>50,000 hr LED lifespan based on IES LM-80 results and TM-21 calculations.
0-10V dimming driver with 10%-100% dimming range. <20% THD, 0.9 power factor.

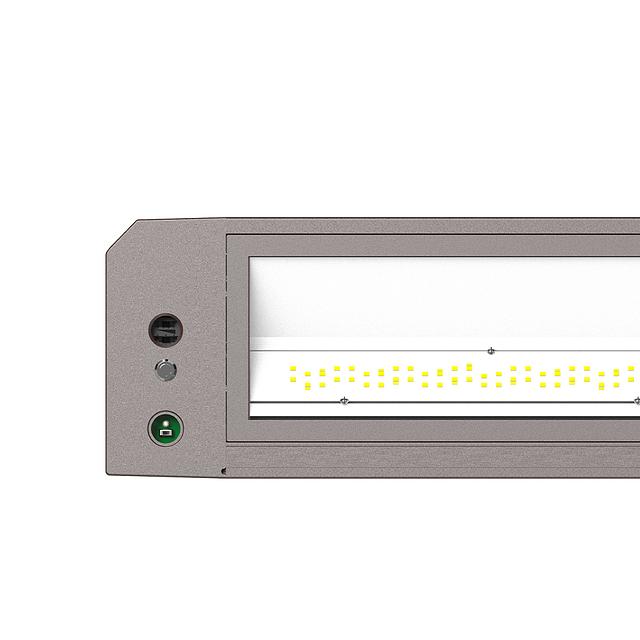

Optional Self-Diagnostic emergency back up.

SENSORS (OPTIONAL)
SENSOR-ANT-4E-5 Integral low-voltage PIR on/off/dimming/photosensing.
SENSOR-BLE-4E-5 Integral low-voltage PIR ALS Control bluetooth/on/off/dimming/
photosensing.
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.

MOUNTING
Wall mount over electrical box or via surface conduit.

STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Corrosion resistant Black, Graphite Metallic, Gray, Silver, or custom RAL#.

CERTIFICATION
IK08 and IK10 Rating.
Wet Location Listed.
Meets Buy America Act requirements.
IDA compliant: with 3000K color temperature selection.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.

WARRANTY
5 year warranty, see Limited Warranty for additional information.
