WAAWAA
New Product

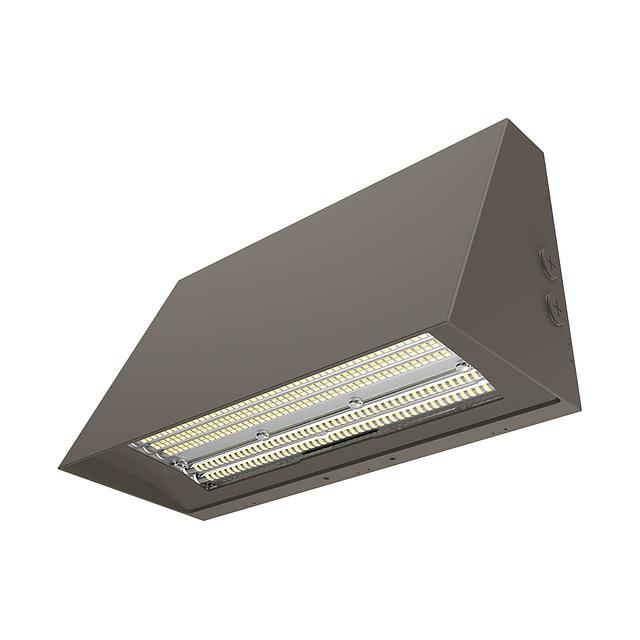

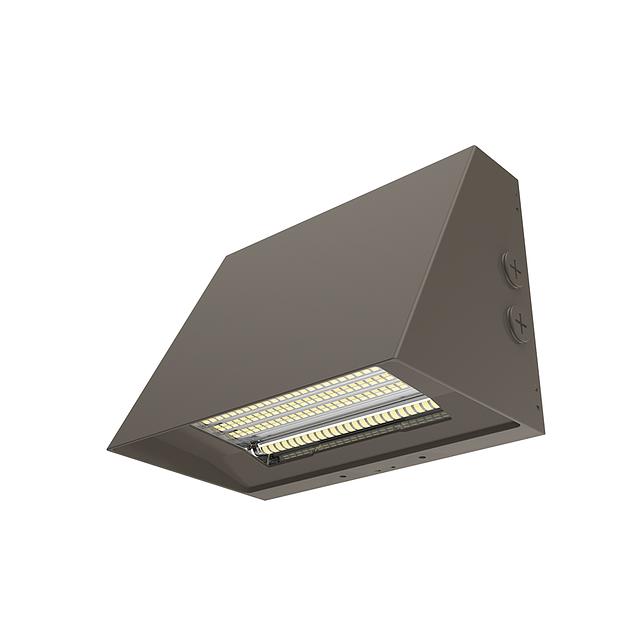

Full Cutoff Wall Pack Selectable
Die-cast aluminum housing provides durable, high-quality construction and is designed for effective heat dissipation to support reliable LED operation and long service life. Fixture is IP65 rated for wet-location outdoor applications. Field-selectable optical distribution with Type II, Type III, or Type IV patterns (T2/T3/T4) adjustable. CCT and output selectable between 3000K ~ 5000K via DIP switch configuration.
Resources
CONSTRUCTION
Die-cast aluminum housing provides durable, high-quality construction and is
designed for effective heat dissipation to support reliable LED operation and long
service life. Fixture is IP65 rated for wet-location outdoor applications.
OPTICS
Field-selectable optical distribution with Type II, Type III, or Type IV patterns
(T2/T3/T4) adjustable. CCT and output selectable between 3000K ~ 5000K via DIP
switch configuration.
ELECTRICAL
80+ CRI Lumileds LED.
-40°C up to 45°C (-40°F up to 113°F) maximum operating temperature.
150,000hr LED at L70 @ 25°C, 120,000hr LED LED at L70 @ 40°C.
Driver operates at 120-277V input, 50/60Hz, <15% THD, 0.9 power factor >90%.
0–10V dimming driver.
Three adjustable Wattage levels available for each model.
Optional 10kV surge protector.
Optional Self-Diagnostic emergency back up.
MOUNTING
Wall mount over electrical box or via surface conduit.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Black, Graphite Metallic, Gray, Silver, and White, or custom RAL#
CERTIFICATION
Wet Location listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipped with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Die-cast aluminum housing provides durable, high-quality construction and is
designed for effective heat dissipation to support reliable LED operation and long
service life. Fixture is IP65 rated for wet-location outdoor applications.
OPTICS
Field-selectable optical distribution with Type II, Type III, or Type IV patterns
(T2/T3/T4) adjustable. CCT and output selectable between 3000K ~ 5000K via DIP
switch configuration.
ELECTRICAL
80+ CRI Lumileds LED.
-40°C up to 45°C (-40°F up to 113°F) maximum operating temperature.
150,000hr LED at L70 @ 25°C, 120,000hr LED LED at L70 @ 40°C.
Driver operates at 120-277V input, 50/60Hz, <15% THD, 0.9 power factor >90%.
0–10V dimming driver.
Three adjustable Wattage levels available for each model.
Optional 10kV surge protector.
Optional Self-Diagnostic emergency back up.
MOUNTING
Wall mount over electrical box or via surface conduit.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Black, Graphite Metallic, Gray, Silver, and White, or custom RAL#
CERTIFICATION
Wet Location listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipped with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Custom
- Dark Bronze
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Distribution
- Type II
- Type III
- Type IV
Efficacy
- 140 lm/w
Emergency Options
- Emergency Battery Backup
Listings
- cULus
Lumens
- Lm
- 3500 Lm
- 4200 Lm
- 5600 Lm
- 7000 Lm
- 8400 Lm
- 11200 Lm
- 13500 Lm
- 14000 Lm
- 18000 Lm
- 22500 Lm
Materials
- Die-Cast Aluminum
Mounting
- Wall
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 120-347 V
Watts
- 25 w
- 30 w
- 40 w
- 50 w
- 60 w
- 80 w
- 90 w
- 100 w
- 120 w
- 150 w
