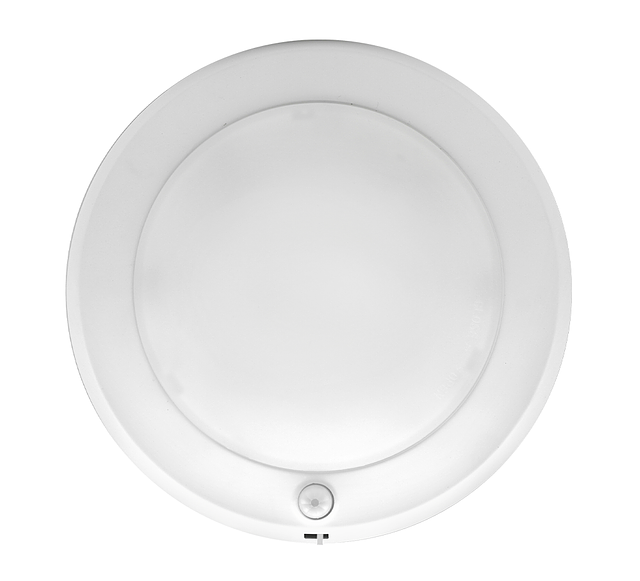

Wet Location Downlight

CONSTRUCTION
Ultra low profile stamped aluminum body for 4” and 6” aperture application,
entire fixture serves as heat sink for exceptional thermal management.

OPTICS
Drop down diffuse impact resistant polycarbonate lens offer glare-free uniform
illumination.
Lens sealed with body to prevent dirty and splash of water from entry.

ELECTRICAL
90+ CRI high efficacy LED light engine secured on aluminum body.
120V, 50/60Hz input
Light engine selectable 2700K / 3000K / 3500K / 4000K / 5000K
Continuous dimming to 10% with standard incandescent dimmer and many LED
rated dimmers.
Greater than 70% LED lumen maintenance at 50,000 hours.
Built-in motion sensor with programmable time delay for 1min / 5min / 8min.

MOUNTING
New Construction: Install onto standard Single Gang, 3” or 4” Round or Square
J-Box.
Retrofit: Install onto standard Single Gang, 3” or 4” Round or Square J-Box, or
use with 4”, 5” or 6” recessed cans with torsion spring clips included.

STANDARD FINISH
Corrosion resistant matte White powder coating finish.

CERTIFICATION
Meets Buy America Act requirements (COTS).
Wet location.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
FCC Certified.
Energy Star Certified.
JA8 Compliant.
Title 24 compliant; see local ordinance for qualification information.

WARRANTY
5 year warranty, see Limited Warranty for additional information.
