SMPR-G2

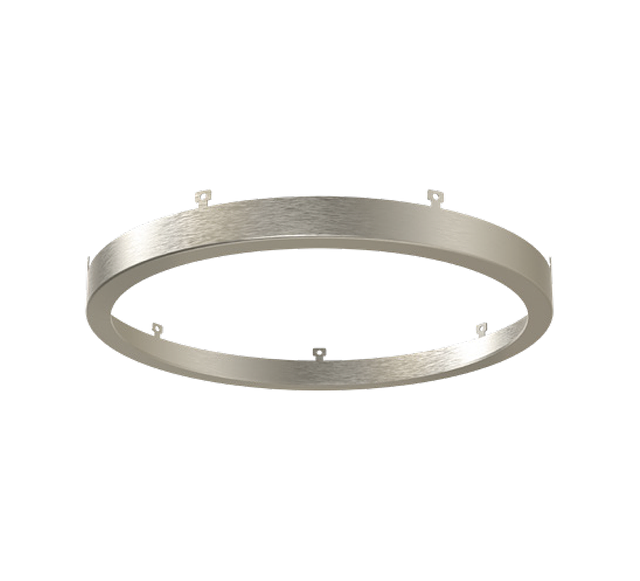

SMPR G2 BRUSHED NICKEL TRIM RING - 1.png

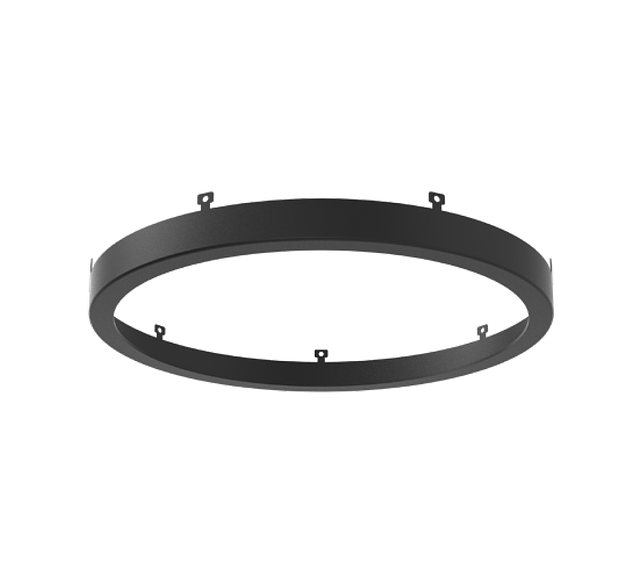

SMPR G2 BLACK TRIM RING - 1.png

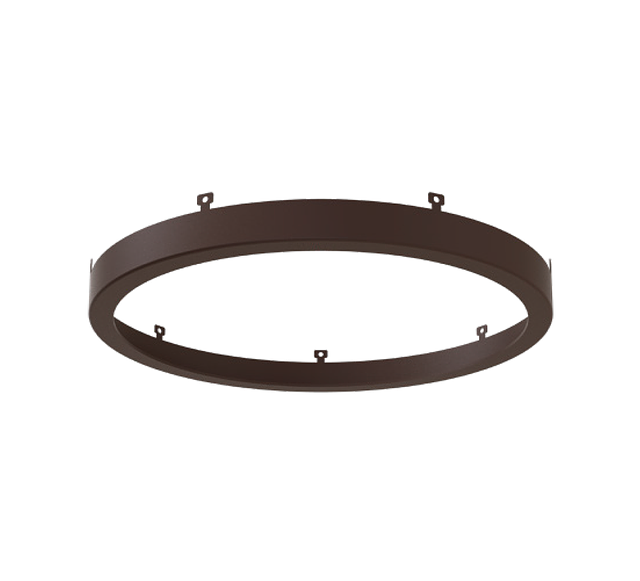

SMPR G2 BRONZE TRIM RING - 1.pngSMPR-G2
New Product
Surface Mount Round Panel Gen 2
Offered in 5”, 7”, 9”, 11”, and 13” sizes, the fixture features a robust die-cast aluminum trim designed for surface mounting. Engineered for secure installation to standard junction boxes with enhanced durability and heat dissipation.
Resources
CONSTRUCTION
Offered in 5”, 7”, 9”, 11”, and 13” sizes, the fixture features a robust die-cast
aluminum trim designed for surface mounting. Engineered for secure installation to
standard junction boxes with enhanced durability and heat dissipation.
OPTICS
Edgelit panel, durable PMMA lens, gasketed and sealed prevent splash of water
or dust object from entry.
ELECTRICAL
90+ CRI.
120V Input Triac dimming.
5 CCT selectable light engine 2700~5000K.
Greater than 70% LED lumen maintenance at 50,000 hours.
-20°C up to 45°C (-4°F up to 113°F) maximum operating temperature.
MOUNTING
New Construction: Surface Mount to standard depth 2.75” or 3.5” J-box.
STANDARD FINISH
Corrosion resistant White finish, suitable for wet locations.
Decorative trim rings available in Brushed Nickel, Black, and Bronze.
CERTIFICATION
IP44 Wet location listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
Title 24 JA8 compliant; see local ordinance for qualification information.
ENERGY STAR® certified for SMPR-G2-5, SMPR-G2-7, SMPR-G2-9 model.
WARRANTY
5 year warranty, see Limited Warranty
Offered in 5”, 7”, 9”, 11”, and 13” sizes, the fixture features a robust die-cast
aluminum trim designed for surface mounting. Engineered for secure installation to
standard junction boxes with enhanced durability and heat dissipation.
OPTICS
Edgelit panel, durable PMMA lens, gasketed and sealed prevent splash of water
or dust object from entry.
ELECTRICAL
90+ CRI.
120V Input Triac dimming.
5 CCT selectable light engine 2700~5000K.
Greater than 70% LED lumen maintenance at 50,000 hours.
-20°C up to 45°C (-4°F up to 113°F) maximum operating temperature.
MOUNTING
New Construction: Surface Mount to standard depth 2.75” or 3.5” J-box.
STANDARD FINISH
Corrosion resistant White finish, suitable for wet locations.
Decorative trim rings available in Brushed Nickel, Black, and Bronze.
CERTIFICATION
IP44 Wet location listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
Title 24 JA8 compliant; see local ordinance for qualification information.
ENERGY STAR® certified for SMPR-G2-5, SMPR-G2-7, SMPR-G2-9 model.
WARRANTY
5 year warranty, see Limited Warranty
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 90 CRI
Color / Finish
- White
Dimensions
- H: 1 In. L: 6 In. W: 6 In.
- H: 1 In. L: 8 In. W: 8 In.
- H: 1 In. L: 9 In. W: 9 In.
- H: 1 In. L: 11 In. W: 11 In.
- H: 1 In. L: 13 In. W: 13 In.
Emergency Options
- Emergency Battery Backup
Integrated Brands
- Avi-on
Listings
- ETL
Lumens
- 829 Lm
- 1174 Lm
- 1394 Lm
- 2029 Lm
- 2183 Lm
Ratings & Compliance
- Assembled in America
- Energy Star
- IP44
- Title 24
Special Programs
- Quick Ship
Voltage
- 120 V
Warranty
- 5 yr
Watts
- 10 w
- 15 w
- 18 w
- 21 w
- 24 w
Weight
- lbs
- 2 lbs
- 3 lbs
