LPNSF
LPNSF-2.2 1K.jpgLPNSF
New Product

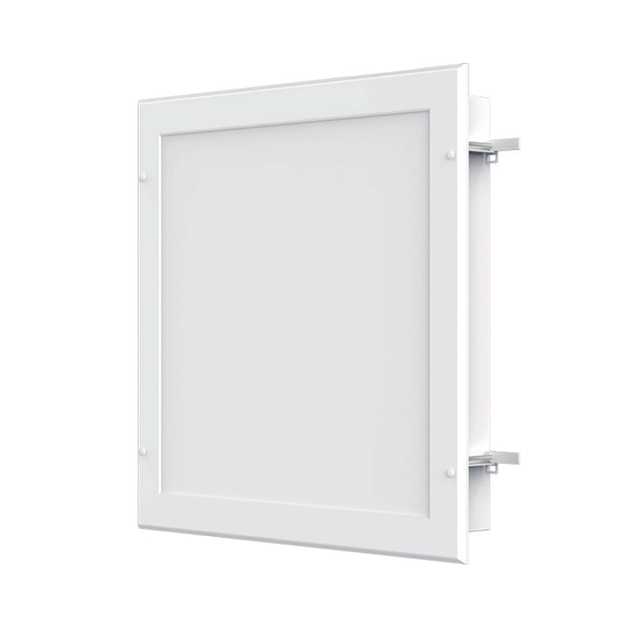

IP65 NSF Rated Lay-in Backlit Panel
Engineered for demanding environments, LPNSF Lay-in backlit panel is NSF certified and IP65 rated, ensuring reliable performance in food processing, cleanroom, and industrial applications. Its gasketed and sealed, smooth-surface design prevents dust and moisture ingress, while delivering uniform, glare-free illumination with high efficacy.
Resources
CONSTRUCTION
Luminaire made of extruded aluminum, corners are rounded for safe handling. Housing made of cold-rolled carbon steel sheet metal (SPCC) designed for Lay-In Recessed application, mounting clips included.
OPTICS
Backlit design provides exceptional lighting distribution.
Available with Polycarbonate (PC) and Tempered Glass (TG) Lens options.
ELECTRICAL
80CRI Long-life, high-efficacy, micro-power LEDs, illumination for extended service
life. Greater than 70% LED lumen maintenance at 50,000 hours.
Selectable lumen and CCT technology allows easy field-adjustable capability.
Driver operates at 120-277V input, 0-10V dimmable driver.
MOUNTING
Designed for Lay-in Recessed application.
Suitable for Hard Ceiling, Drywall, T-bar suspension system. Built-in mounting clips on luminaire housing.
STANDARD FINISH
Antimicrobial White paint, 90% minimum average reflective powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
CERTIFICATION
Option for “Assembled in America” upon request.
NSF Food Rated.
IP65 Rated.
All luminaries are built to UL1598 standards and bear appropriate cULus labels. For
Emergency application, equipment with UL924 certified battery packs.
DLC® Standard (DesignLights Consortium Listed)
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Luminaire made of extruded aluminum, corners are rounded for safe handling. Housing made of cold-rolled carbon steel sheet metal (SPCC) designed for Lay-In Recessed application, mounting clips included.
OPTICS
Backlit design provides exceptional lighting distribution.
Available with Polycarbonate (PC) and Tempered Glass (TG) Lens options.
ELECTRICAL
80CRI Long-life, high-efficacy, micro-power LEDs, illumination for extended service
life. Greater than 70% LED lumen maintenance at 50,000 hours.
Selectable lumen and CCT technology allows easy field-adjustable capability.
Driver operates at 120-277V input, 0-10V dimmable driver.
MOUNTING
Designed for Lay-in Recessed application.
Suitable for Hard Ceiling, Drywall, T-bar suspension system. Built-in mounting clips on luminaire housing.
STANDARD FINISH
Antimicrobial White paint, 90% minimum average reflective powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
CERTIFICATION
Option for “Assembled in America” upon request.
NSF Food Rated.
IP65 Rated.
All luminaries are built to UL1598 standards and bear appropriate cULus labels. For
Emergency application, equipment with UL924 certified battery packs.
DLC® Standard (DesignLights Consortium Listed)
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Anti-Microbial White
Dimensions
- H: 3.94 In. L: 47.70 In. W: 11.74 In.
- H: 3.94 In. L: 23.70 In. W: 23.70 In.
- H: 3.94 In. L: 47.70 In. W: 23.70 In.
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
Dimming Range
- 10%
Efficacy
- 110 lm/w
- 125 lm/w
Emergency Options
- GTD
- Remote EM Battery
Integrated Brands
- Avi-on
Lamp Life
- 50000 hrs
Lamp Source
- LED
Listings
- cULus
Lumens
- 2700 Lm
- 3100 Lm
- 3300 Lm
- 3600 Lm
- 4400 Lm
- 4700 Lm
- 5400 Lm
- 6000 Lm
Materials
- Aluminum
- Glass
- Polycarbonate
Mounting
- Recessed
- T-Grid
Ratings & Compliance
- Antimicrobial
- Assembled in America
- Buy American Act (BAA)
- DLC
- IP65
- NLC
- NSF
- Wet
Shape
- Rectangular
- Square
Size
- 1x4 Ft.
- 2x2 Ft.
- 2x4 Ft.
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 25 w
- 30 w
- 40 w
- 50 w
