CS Series - Bay Light

CONSTRUCTION
Casting thermally conducts LED heat to optimize performance and long life. Corrosionresistant
powder coating provides protection and architectural appearance while
adapting well to the environment. Housing is completely sealed against moisture and
environmental contaminants. IP65 wet location rated.

OPTICS
Anti-UV prismatic translucent lens is designed to shape light uniformity and control
glare. Polycarbonate lens provides IK08 impact resistance. UGR<28.

ELECTRICAL
80 CRI LED.
-40°C up to 45°C (-40°F up to 113°F) maximum operating temperature.
Long-life 100,000 hr LED at L70.
Available with CCT / Output selectable function.
Universal Input 120-277V, 0-10V dimming, with a 10~100% Dimming Range.
50/60Hz, <15% THD, 0.9 power factor, built-in 6KV surge protection.

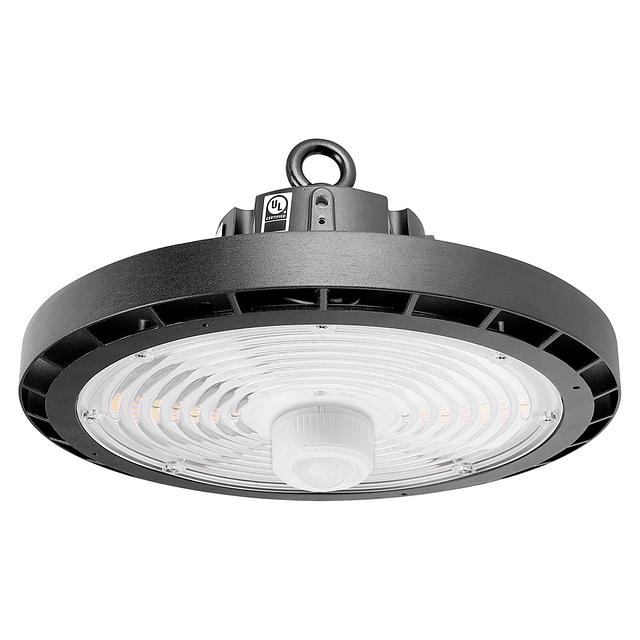

Optional dimming sensor for occupancy and ambient light level detection.

SENSORS (OPTIONAL)
SENSOR-ANT-6-4T - Plug-N-Play PIR on/off/dimming/photosensing (40FT MH).
SENSOR-ANT-6-4T-H - Plug-N-Play PIR on/off/dimming/photosensing (50FT MH).
SENSOR-BLE-6-4T - Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming (40FT MH).
SENSOR-BLE-6-4T-H - Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming (50FT MH).
“-EM” - Compatible with Emergency Battery (Auto-bypass)

MOUNTING

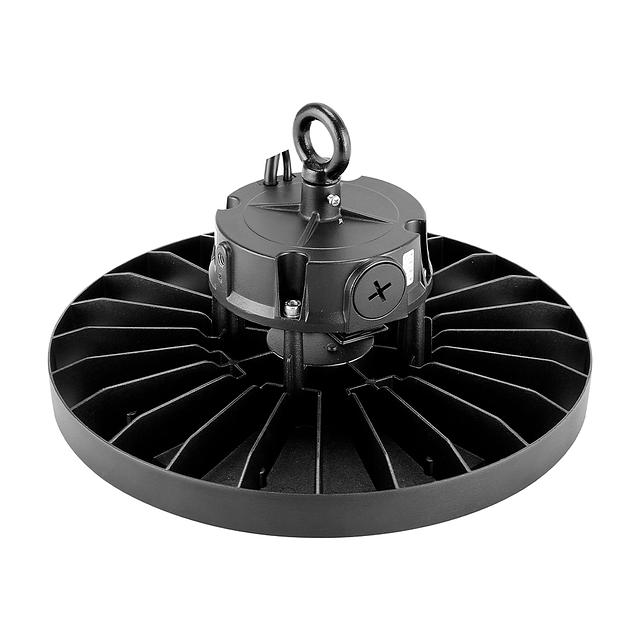

Standard Ring w/Safety Cable included.
Optional 3/4” Pipe Adapter to Pendant Mount Application.

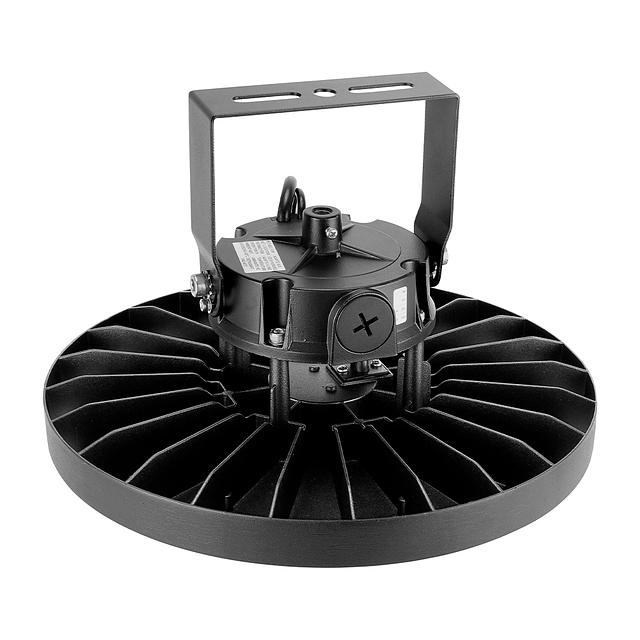

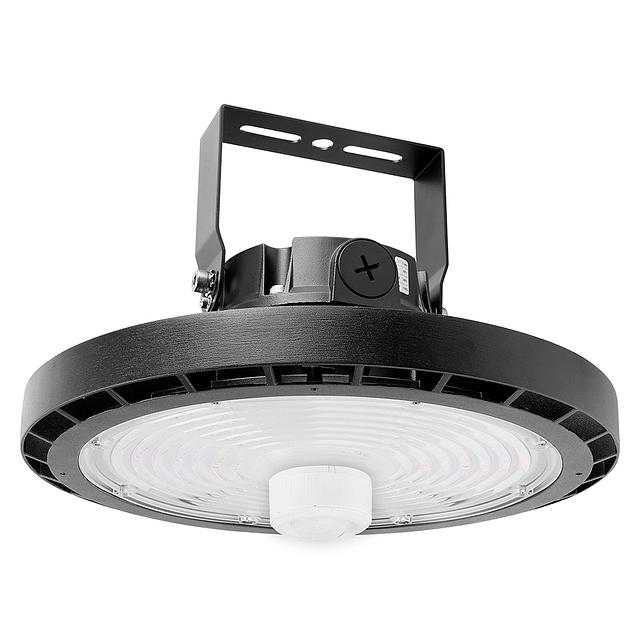

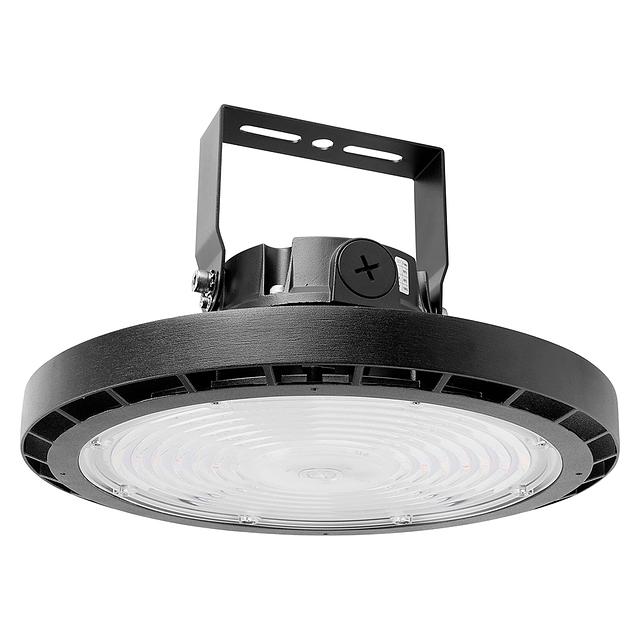

Optional Yoke mount bracket.

STANDARD FINISH
Corrosion Resistant Semi-Gloss Black Finish.

CERTIFICATION
IK08 Rating.
IP65 wet location label standard.
Meets NSF Certification for food-grade non-splash zones.
Meets Buy America Act requirements. Available for BAA Compliant projects.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified)

WARRANTY
5 year warranty, see Limited Warranty for additional information.
