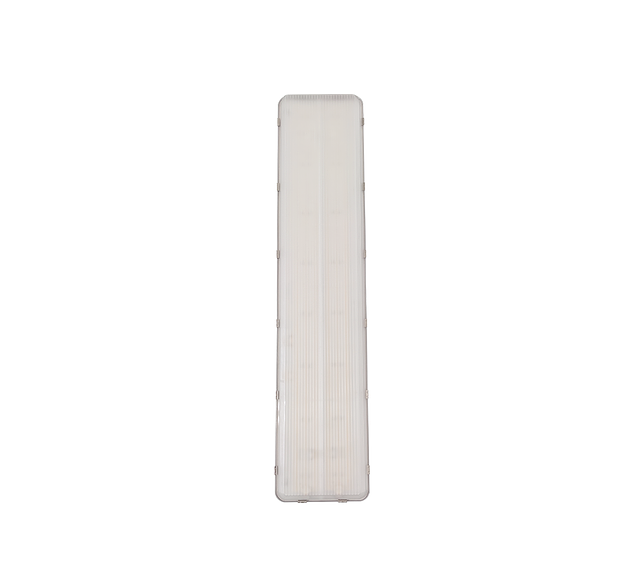

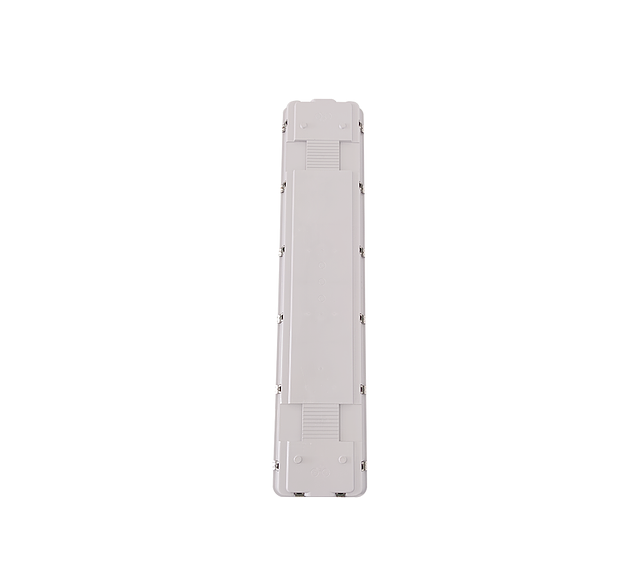

NSF Certified Vapor Tight Linear

CONSTRUCTION

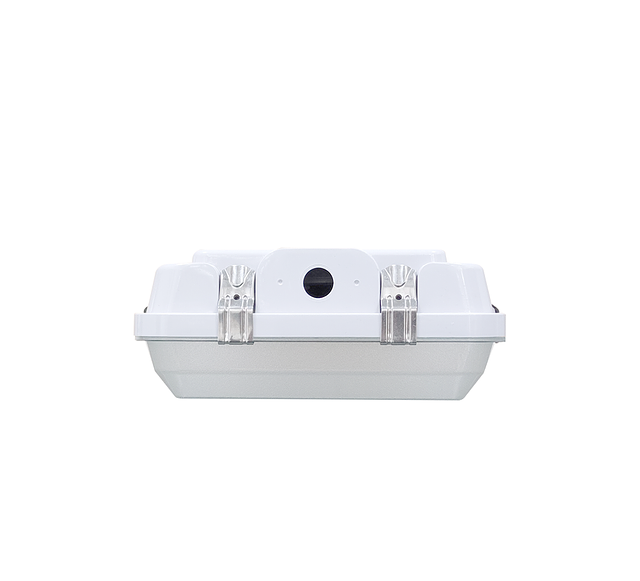

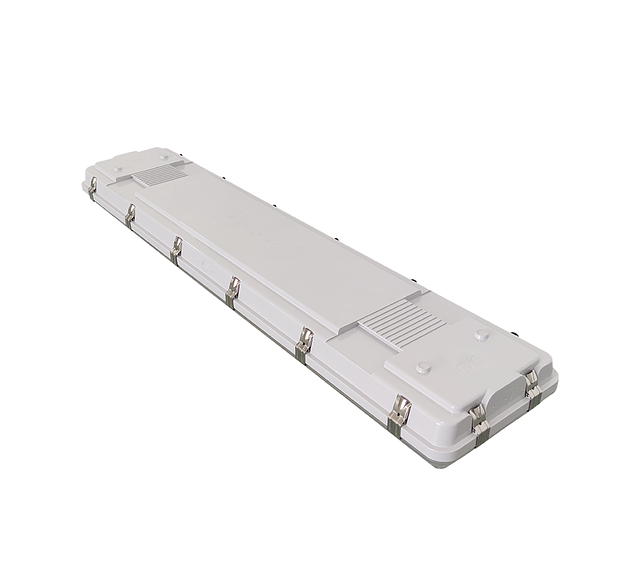

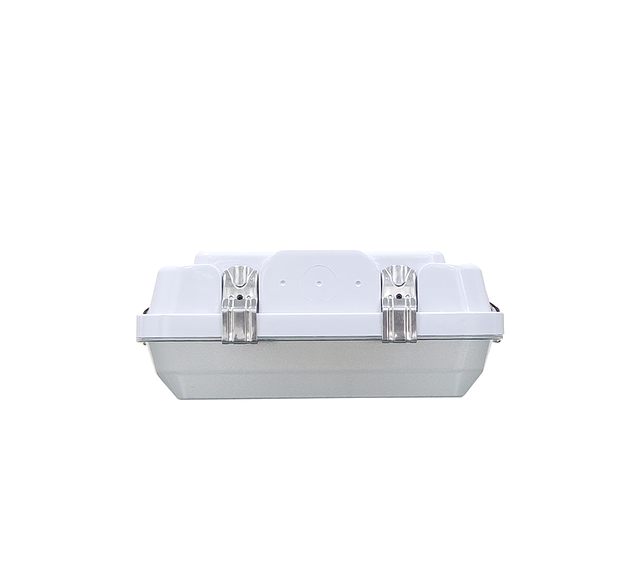

Polycarbonate material housing, compact design with stainless steel latches. 3/4”
knockout back and end of housing for end mount sensor, through wiring or surface
conduit mount.

OPTICS
Frosted polycarbonate lens offers edge to edge smooth illumination for maximum
visual comfort.

ELECTRICAL
Delivered average 160lm/W efficacy LEDs offer 80+ color rendering index (CRI).
Field Selectable Output and CCT (see ordering information for detail).
L70 >100,000 hours expected life.
-40°C up to 50°C (-40°F up to 122°F) maximum operating temperature.
Driver operates at 120-277V Input, Dim-to-Off 0-10V driver, 12V AUX Output.
Surge protection: L-N: 6kV; L/N-GND: 6kV.
Over temperature protection.

MOUNTING
Designed for direct wire or as a portable luminaire with use of power cord.*
Standard surface mountable underneath electrical box, or surface conduit
mount through 3/4” knockout.
*Power-cord - optional add-on.

SENSORS (OPTIONAL)
SENSOR-819W-O1 End mount on/off motion sensor highbay lens (Wet).
SENSOR-819W-D1 End mount programmable motion and photocell sensor highbay lens (Wet).
SENSOR-BLE-819W-L1 End mount ALS CONTROL Bluetooth on/off motion sensor lowbay lens (Wet).
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
SENSOR-PH-PB-U Integral Button Style Photocell.

STANDARD FINISH
Light Gray finish standard, IP66 for wet location.

CERTIFICATION
IK10 Impact Rated.
National Sanitation Foundation Certified & Listed.
IP66 Wet location label standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified).

WARRANTY
5 year warranty, see Limited Warranty for additional information.
