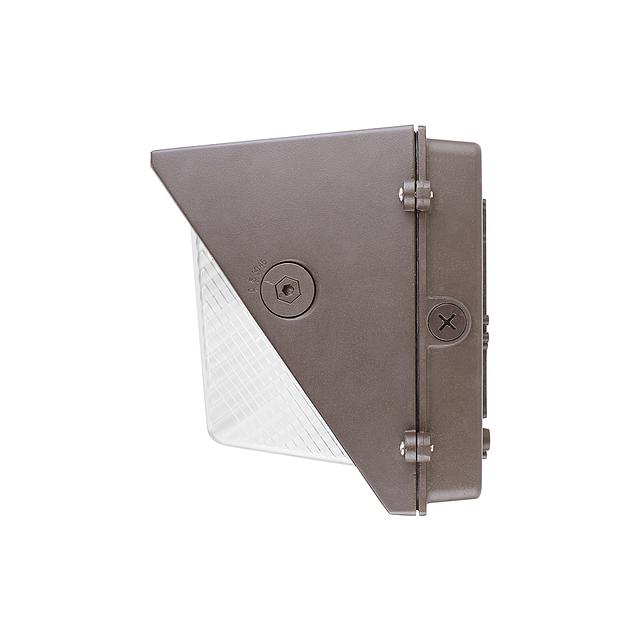

WBA_Side-1K.jpgWBA
New Product
Forward Throw Adjustable Wall Pack
The Forward Throw Adjustable Wall Pack is a versatile and durable outdoor lighting solution designed to provide powerful, directional illumination for commercial and industrial environments. Featuring an adjustable module, it allows control of light distribution — whether angled downward or forward for wide-area coverage. Constructed from heavy-duty, die-cast aluminum with a weather-resistant finish and an impact-resistant lens, this fixture ensures long-lasting performance in even the most demanding outdoor conditions.
Engineered with high-efficiency LED technology, the wall pack delivers bright, uniform light output while significantly reducing energy consumption and maintenance costs compared to traditional lighting systems. Available in multiple wattages and color temperatures, it can be customized to suit various applications such as building exteriors, loading docks, walkways, and parking areas. With optional features like photocell compatibility and dimming capability, the Forward Throw Adjustable Wall Pack combines flexibility, performance, and efficiency in a modern, low-profile design.
Resources
CONSTRUCTION
Cast aluminum frame holds lens and seals to housing gasket with two stainless steel screws. Door assembly hinges to side, cast aluminum housing with three 1/2” conduit entries (on top and sides), for surface conduit. Casting thermally conducts LED heat to optimize performance and long life.
OPTICS
UV stabilized polycarbonate refractor softens LED image and provides uniform distribution and glare control. Click-adjustable throw allows field set the distribution angle (0°, 15°, 30°, 45°). CCT and output selectable between 3000K ~ 5000K configuration settings.
ELECTRICAL
80+ CRI Lumileds LED.
-40°C up to 40°C (-40°F up to 104°F) maximum operating temperature.
150,000hr LED at L70 @ 25°C, 120,000hr LED LED at L70 @ 40°C.
Driver operates at 120-277V input, 50/60Hz, <15% THD, 0.9 power factor >90%.
0–10V dimming driver, button photocontrol standard included.
Four adjustable Wattage levels available for each model.
Optional 10kV surge protector.
Optional Self-Diagnostic emergency back up.
Optional Self-Diagnostic Sub-Zero emergency back up.
MOUNTING
Wall mount over electrical box or via surface conduit.
SENSORS (OPTIONAL)
SENSOR-BLE-6-4T Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming/
photosensing.
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Black, Graphite Metallic, Gray, Silver, and White, or custom RAL#
CERTIFICATION
Wet Location listed.
Meets Buy America Act requirements.
IDA compliant: with 3000K color temperature selection.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipped with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Cast aluminum frame holds lens and seals to housing gasket with two stainless steel screws. Door assembly hinges to side, cast aluminum housing with three 1/2” conduit entries (on top and sides), for surface conduit. Casting thermally conducts LED heat to optimize performance and long life.
OPTICS
UV stabilized polycarbonate refractor softens LED image and provides uniform distribution and glare control. Click-adjustable throw allows field set the distribution angle (0°, 15°, 30°, 45°). CCT and output selectable between 3000K ~ 5000K configuration settings.
ELECTRICAL
80+ CRI Lumileds LED.
-40°C up to 40°C (-40°F up to 104°F) maximum operating temperature.
150,000hr LED at L70 @ 25°C, 120,000hr LED LED at L70 @ 40°C.
Driver operates at 120-277V input, 50/60Hz, <15% THD, 0.9 power factor >90%.
0–10V dimming driver, button photocontrol standard included.
Four adjustable Wattage levels available for each model.
Optional 10kV surge protector.
Optional Self-Diagnostic emergency back up.
Optional Self-Diagnostic Sub-Zero emergency back up.
MOUNTING
Wall mount over electrical box or via surface conduit.
SENSORS (OPTIONAL)
SENSOR-BLE-6-4T Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming/
photosensing.
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Black, Graphite Metallic, Gray, Silver, and White, or custom RAL#
CERTIFICATION
Wet Location listed.
Meets Buy America Act requirements.
IDA compliant: with 3000K color temperature selection.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipped with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Custom
- Dark Bronze
Controls Options
- Daylight Sensor
- Motion Sensor
- Photocell
- Wireless Control
Dimensions
- H: 10 In. L: 15 In. W: 8 In.
- H: 10 In. L: 19 In. W: 10 In.
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
Dimming Range
- 10%
Distribution
- Type 3
- Type 4
Efficacy
- 140 lm/w
- 150 lm/w
- 163 lm/w
Emergency Options
- EM Circuit
- Integral EM Battery
Integrated Brands
- Avi-on
Lamp Life
- 120000 hrs
Listings
- cULus
Lumens
- 3900 Lm
- 6000 Lm
- 8900 Lm
- 9000 Lm
- 14000 Lm
- 22000 Lm
Materials
- Aluminum
- Polycarbonate
- Steel
Mounting
- Wall
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- DLC Premium
- TAA
- Wet
Shape
- Rectangular
Special Programs
- Quick Ship
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 24 w
- 36 w
- 40 w
- 48 w
- 60 w
- 80 w
- 90 w
- 100 w
- 120 w
- 150 w
Weight
- 10 lbs
- 13 lbs
