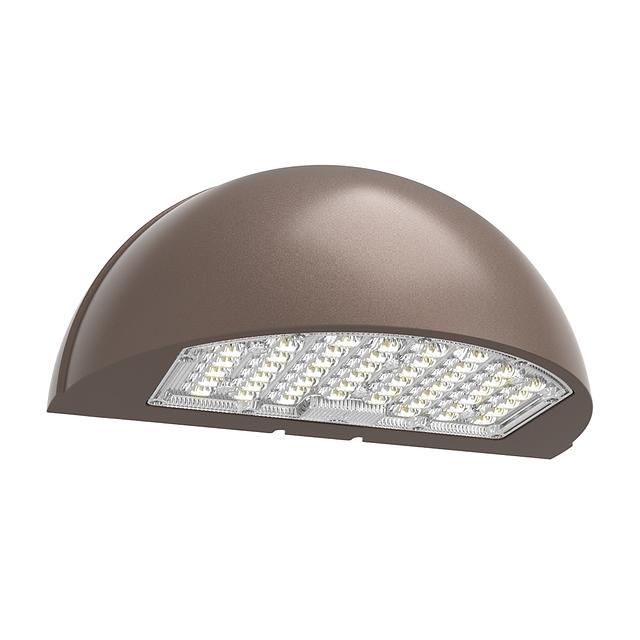

Half Moon Wall Pack

CONSTRUCTION
Die-cast aluminum housing provides durable, high-quality construction and is
designed for effective heat dissipation to support reliable LED operation and long
service life. Fixture is IP65 rated for wet-location outdoor applications.

OPTICS
UV-stabilized polycarbonate lens provides durable optical protection. CCT and
output selectable between 3000K ~ 5000K via DIP switch configuration.

ELECTRICAL
80+ CRI Lumileds LED.
-40°C up to 45°C (-40°F up to 113°F) maximum operating temperature.
150,000hr LED at L70 @ 25°C, 120,000hr LED LED at L70 @ 40°C.
Driver operates at 120-277V input, 50/60Hz, <15% THD, 0.9 power factor >90%.
0–10V dimming driver, button photocontrol standard included.
Three adjustable Wattage levels available for each model.
Optional 10kV surge protector.
Optional Self-Diagnostic emergency back up.

SENSORS (OPTIONAL)
SENSOR-BLE-6-4T Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming/
photosensing.
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
CONTROL-BLE-SK104-PH I Integral Bluetooth Fixture Controller w/ Button
Photocell (ALS Control Mobile App)
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.

MOUNTING
Wall mount over electrical box or via surface conduit.

STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Black, Graphite Metallic, Gray, Silver, and White, or custom RAL#

CERTIFICATION
IP65 Wet Location listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipped with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified) listed.

WARRANTY
5 year warranty, see Limited Warranty for additional information.
