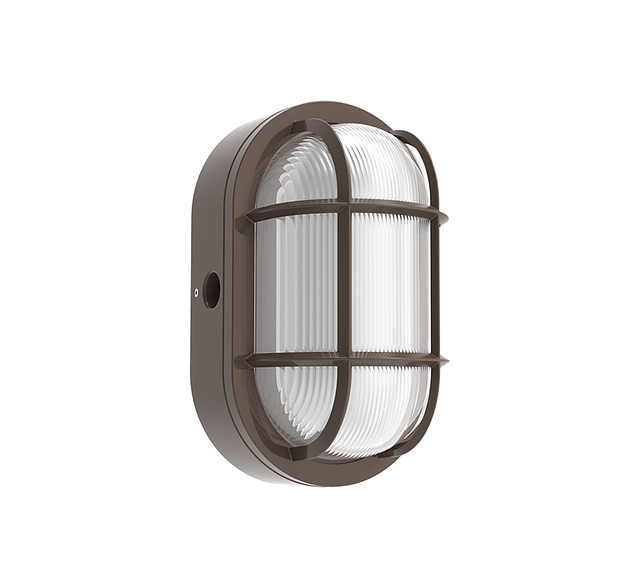

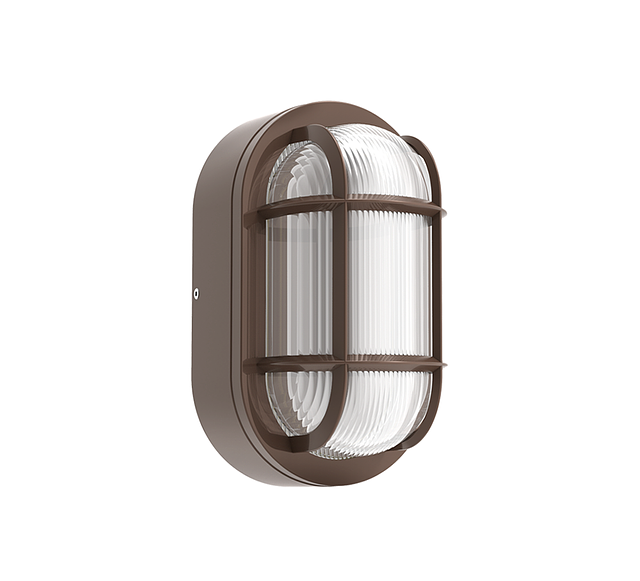

Bulkhead Oval

CONSTRUCTION
Die-cast aluminum housing provides durable, high-quality construction and is
designed for effective heat dissipation to support reliable LED operation and long
service life. Fixture is IP65 rated for wet-location outdoor applications.

OPTICS
Durable prismatic glass lens provides uniform light distribution for general outdoor
and indoor lighting applications. CCT and output selectable between 3000K ~
5000K via internal switch configuration.

ELECTRICAL
80+ CRI LED.
-40°C up to 45°C (-40°F up to 113°F) maximum operating temperature.
Driver operates at 120-277V input, 50/60Hz, <15% THD, 0.9 power factor >90%.
Three adjustable wattage levels available for each model.
Integrated DC photocell included.
Optional 10kV surge protector.
Optional Self-Diagnostic emergency back-up.

MOUNTING
Wall mount over electrical box or via surface conduit.

STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Black, Graphite Metallic, Gray, Silver, and White, or custom RAL#

CERTIFICATION
IP65 Wet Location listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipped with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified) listed.

WARRANTY
5 year warranty, see Limited Warranty for additional information.
