Decorative Canopy Light

CONSTRUCTION
Rugged die-cast aluminum housing with a durable powder coat finish provides
long-term, reliable performance. Wet location listed.

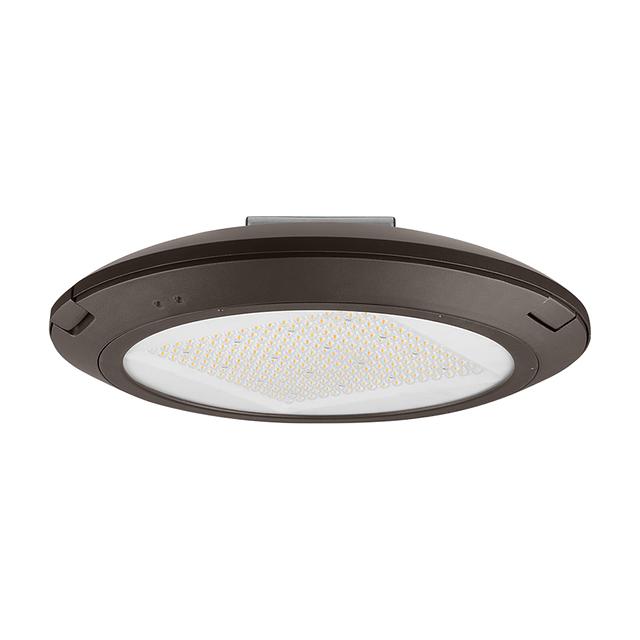

OPTICS
Low-glare optical design provides comfortable illumination.
Optional amber 590nm turtle-friendly LED.
Optional external half glare shield.
Available with Type II, III, IV, or V light distribution.
Field Selectable CCT from 3000K, 4000K, and 5000K.

ELECTRICAL
70+ CRI LED.
Each model features three field selectable wattage options.
-30°C up to 45°C (-22°F up to 113°F) maximum operating temperature.
50/60Hz, <20% THD, 0.9 power factor.
Driver operates at 120-277V input, 0-10V dimmable driver, down to 0%.
Optional 200-480V input.
SENSORS (OPTIONAL)
SENSOR-SP19L PIR on/off/dimming/photosensing up to 25FT.
SENSOR-PH-PB-X-U Button style photocell.

MOUNTING

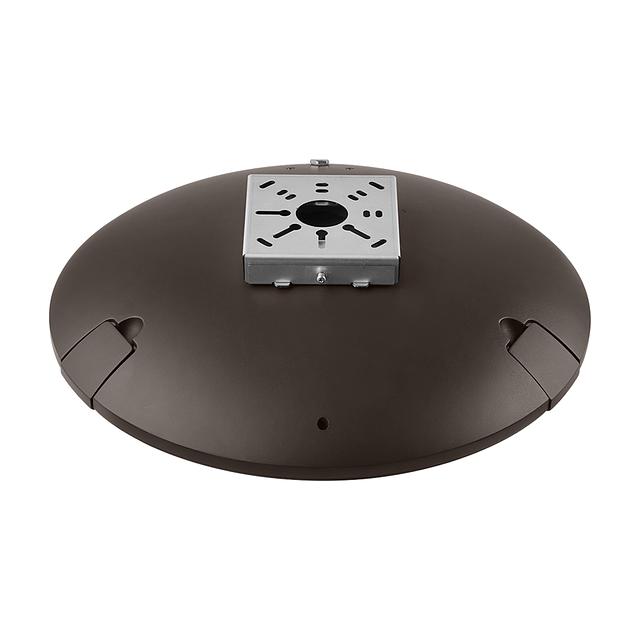

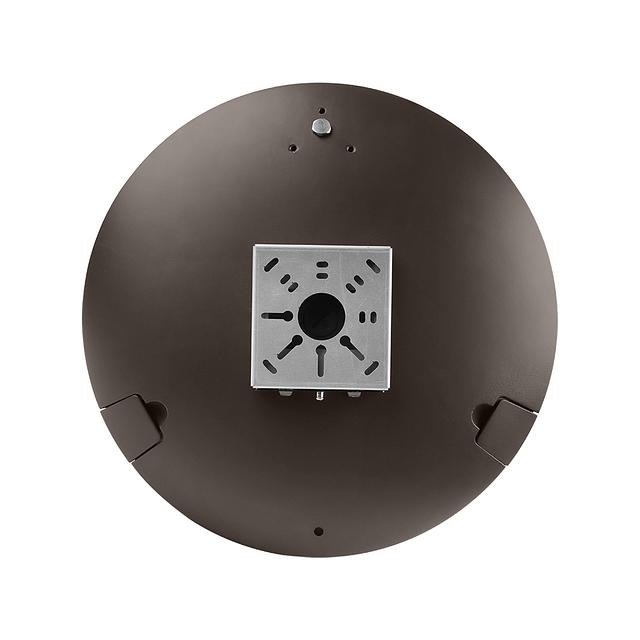

Pendant Mount Kit 3/4” NPT Adapter (Rod Provided by Others).
Optional surface mount bracket.

STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Corrosion resistant Black, Graphite Metallic, Gray, Silver, White, Custom RAL#.

CERTIFICATION
Wet location label standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
DLC® Premium (DesignLights Consortium Qualified).

WARRANTY
5 year warranty, see Limited Warranty for additional information.
