Sports Light Natatorium

CONSTRUCTION
Aluminum alloy housing with IK08 impact resistance. Bracket is constructed
of ZAM (zinc, aluminum, magnesium alloy) material with a powder coat finish.

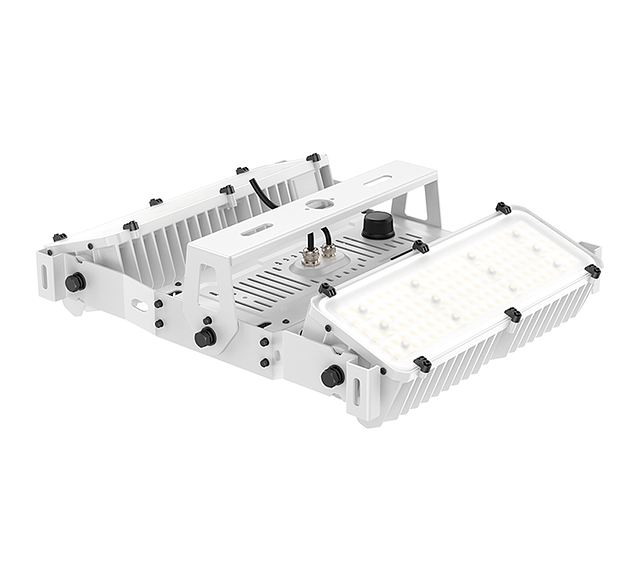

Fixture is C4 rated for corrosion resistance. 180° rotatable module allows precise
adjustment of upward and downward light distribution.

OPTICS
Multiple precision engineered distributions (symmetrical 33°, 43° and
asymmetrical intense 35°), optics are designed to shape the distribution,
maximizing efficiency and mainting high levels for various sports field
applications.
Light engine available in 5000K (80+ CRI) configurations with high efficacy up to
155 lm/W.
Scalable lumen package from 22,780 to 88,320 lumens.

ELECTRICAL
-30°C minimum to 50°C (-22°F to 122°F) maximum operating temperature.
Class I constant current drivers with expected life of 262,000 hours (L70).
>.9 power factor, <20% total harmonic distortion, built-in 6kV surge protection.
Driver operates at 120-277V input, 0-10V dimmable.
Optional 277-480V input.

SENSOR / CONTROLLER
Optional: Synapse Wireless ProFX Lighting Control System

MOUNTING

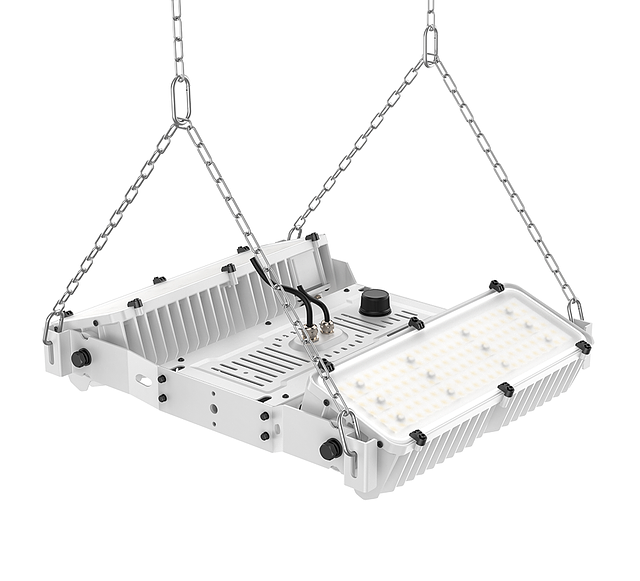

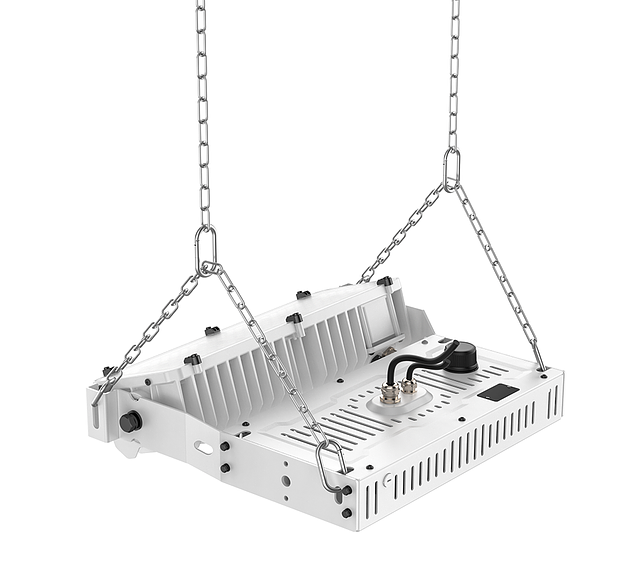

Standard 3FT chain mount for suspended installation.

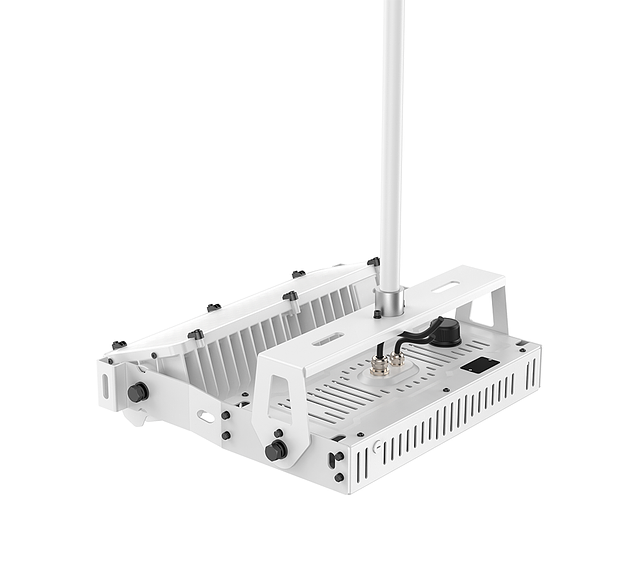

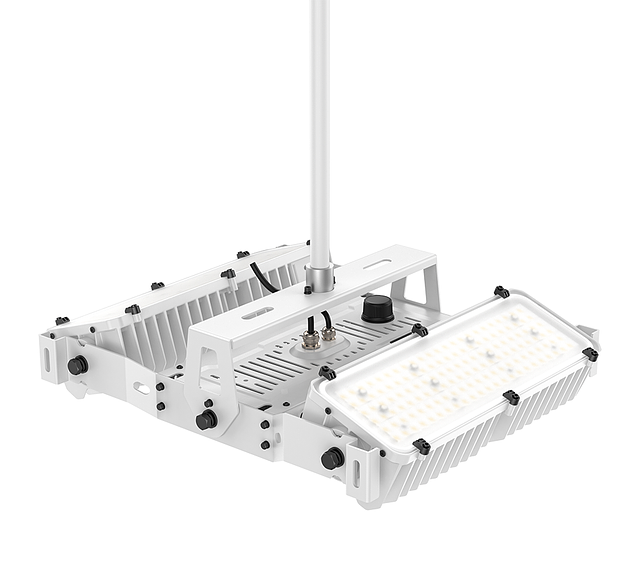

Optional 3/4” NPT adapter for pendant mount.
Optional yoke mount.

STANDARD FINISH
White corrosion resitant powder coat finish, C4-rated corrosion resistance
provides added durability in industrial and coastal environments with moderate
salt exposure.

CERTIFICATION
IK08 Rating.
IP65 Wet Location Listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.

WARRANTY
5 year warranty, see Limited Warranty for additional information.
