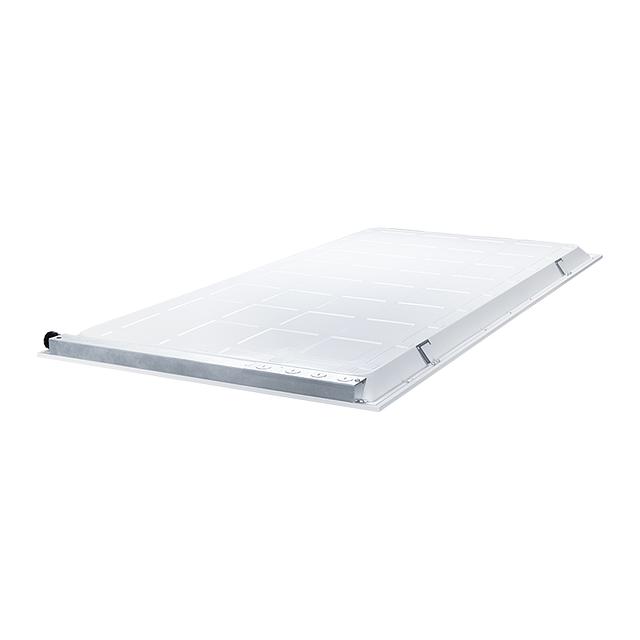

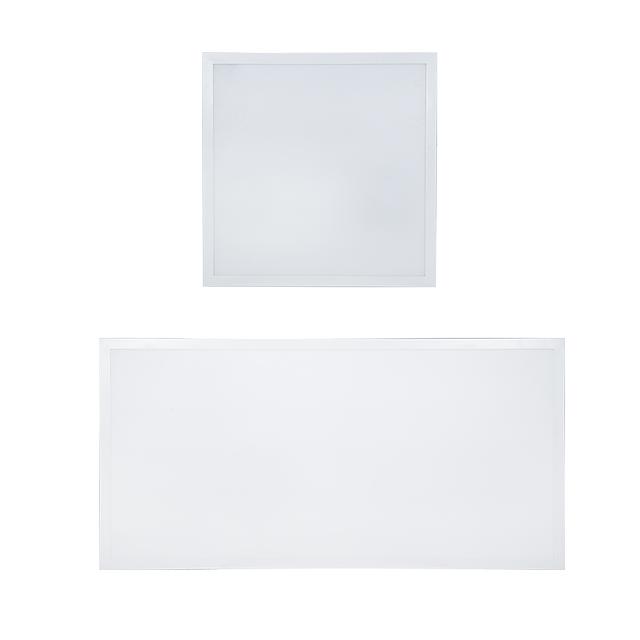

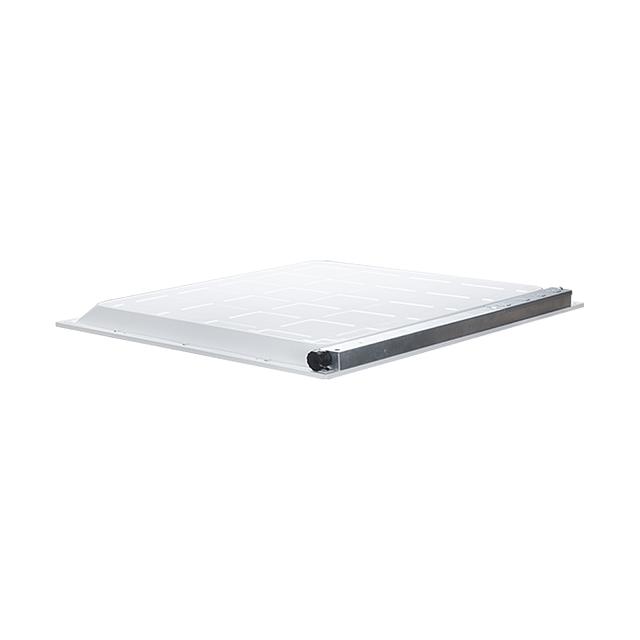

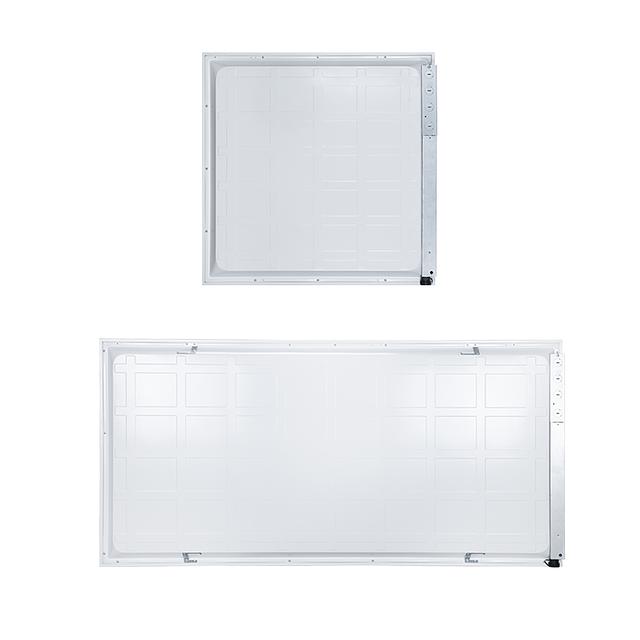

Wet Location Selectable Backlit Panel

CONSTRUCTION
Low profile panel construction with a durable white finish for long-lasting
performance. Designed for recessed ceiling installation with compatibility for
suspension mounting using optional accessories. Suitable for wet locations
with full-body IP65-rated enclosure.

OPTICS
Backlit design provides exceptional lighting distribution. Frosted polystyrene
lens offers edge to edge illumination without pixilation or bright spots.

ELECTRICAL
80+ CRI.
Long-life, high-efficacy, micro-power LEDs, illumination for extended
service life. Greater than 70% LED lumen maintenance at 100,000 hours
(L70>100,000).
Selectable lumen and CCT technology allows easy field-adjustable capability,
Special made 90CRI LED, consult factory.
Driver operates at 120-277V input, 0-10V dimmable driver.

MOUNTING
Designed to accommodate lay-in ceilings, Slot T, and T-bar suspension system
for 5/8” and 3/8” width. Built-in earthquake clips come standard.
Surface/cable mount applications, use surface/cable kit accessories.
Plaster or sheetrock installations, select flange kit.
Hard ceiling application, select hard ceiling kit.

SENSORS (OPTIONAL)
SENSOR-BLE-7 Integral Microwave Bluetooth Wireless Motion/on/off/dimming/
photosensing.
SENSOR-ANT-7 Integral Mircowave Motion/on/off/dimming/photosensing.
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
CONTROL-BLE-620 Bluetooth Wireless Fixture Controller for CCT Tuning,
Dimming, Grouping, Scheduling Features (ALS Control Mobile App)

STANDARD FINISH
90% minimum average reflective white polyester powder coat bonded to
phosphate-free, multi-stage pretreated metal. All parts painted after fabrication
to facilitate installation, increase efficiency, and inhibit corrosion.

CERTIFICATION
IP65 Wet Rated.
Meets Buy America Act requirements.
RoHS Compliant.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Standard (DesignLights Consortium Listed)

WARRANTY
5 year warranty, see Limited Warranty for additional information.
