SPQ
SPQ.1K.jpgSPQ
Sports Light
The SPQ is a high-quality, durable outdoor lighting solution. Its die-cast aluminum modular housing allows for efficient heat dissipation, maximizing the life of the luminaire. The precisely engineered optics distribute light uniformly, and a variety of distribution types are available. The luminaire is EPA friendly and easy to install with versatile mounting brackets. The standard finish is black UV stabilized polyester powder paint. The luminaire is ETL listed, IP66 rated, and DLC Premium Listed. A 5-year warranty is included and meets Buy America Act requirements.
Resources
CONSTRUCTION
Single-piece die-cast aluminum modular housing, dynamic thermal management design that maximizes heat dissipation, substantially increasing life of the luminaire.

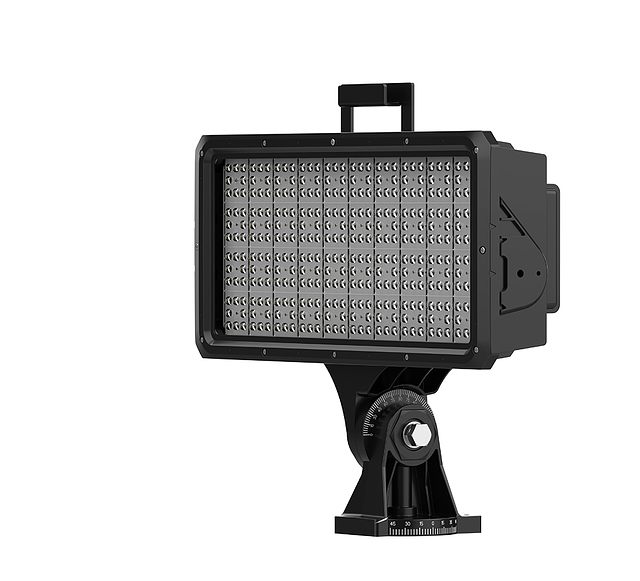

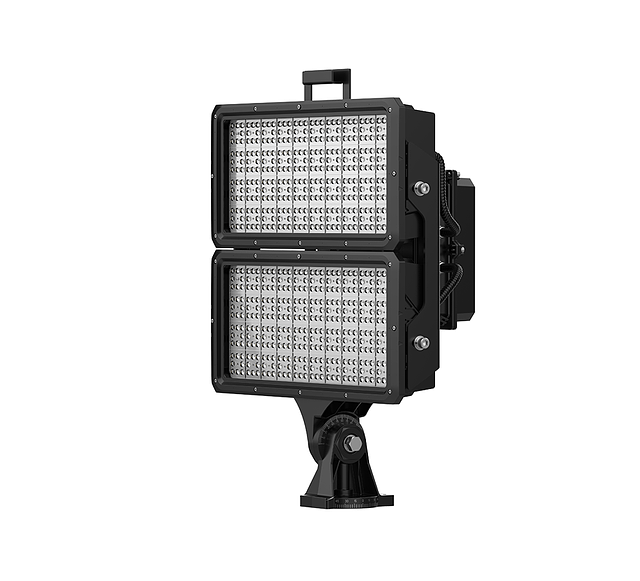

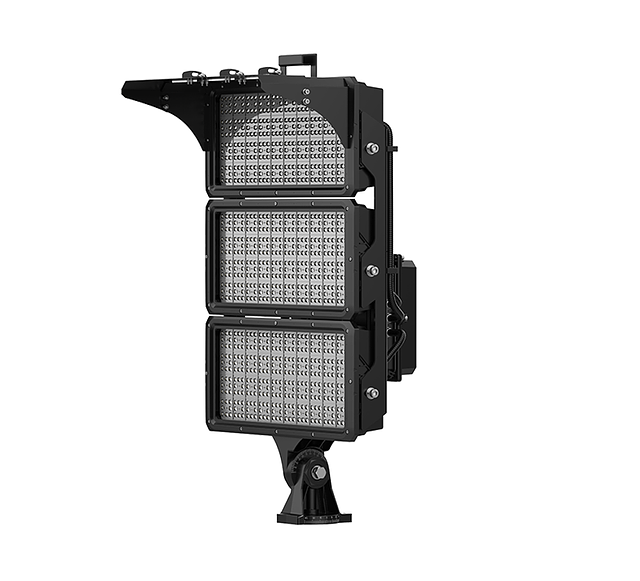

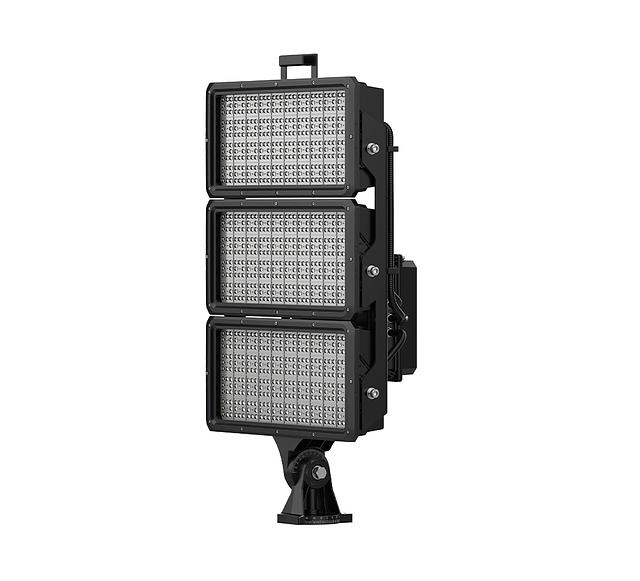

Available with single, duo or trio-module configuration to meet various project requirements. Low wind-low design, light weight, EPA friendly.
OPTICS
Precisely engineered optics aim light to uniformly illuminate the field. Available with 10, 15, 30, 60, 90 Degree and NEMA Type II distribution.

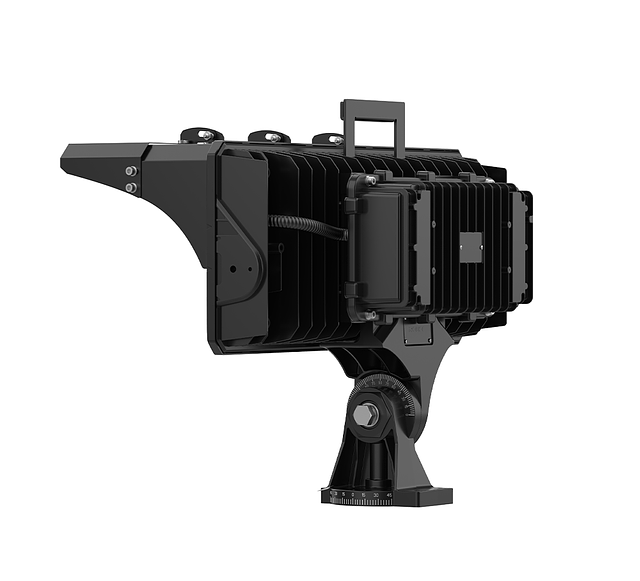

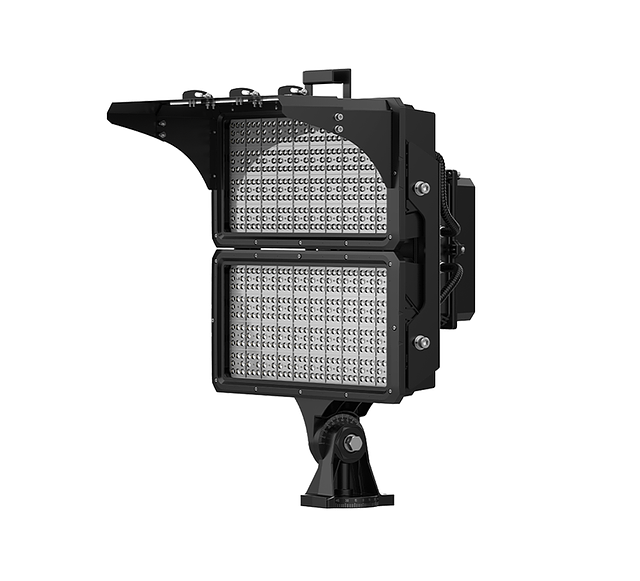

Maximum delivered lumen up to 270,000. Optional light shield for less glare and light spill.
ELECTRICAL
-40°C minimum to +50°C maximum operating temperature. RoHS compliant electronic Class I drivers expected life of 100,000 hours.
<1% failure rate >.9 power factor <20% total harmonic distortion 10kV surge protector.
Optional 1-10V dimmable driver, Zigbee wireless control module
CONTROL (OPTIONAL)
CONTROL-AVI-LVFA AVI-ON Bluetooth Mesh Controller.
MOUNTING
Robust designed yoke mount secured with 3/4” bolt, versatile mounting bracket.
Designed for ease of installation, 10° increment marking built on bracket offers precise horizontal and vertical aiming.
STANDARD FINISH
Black UV stabilized polyester powder paint finish.
CERTIFICATION
Meets Buy America Act requirements. IP65 Wet location label standard.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels. DLC® Premium (DesignLights Consortium Qualified).
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Single-piece die-cast aluminum modular housing, dynamic thermal management design that maximizes heat dissipation, substantially increasing life of the luminaire.
Available with single, duo or trio-module configuration to meet various project requirements. Low wind-low design, light weight, EPA friendly.
OPTICS
Precisely engineered optics aim light to uniformly illuminate the field. Available with 10, 15, 30, 60, 90 Degree and NEMA Type II distribution.
Maximum delivered lumen up to 270,000. Optional light shield for less glare and light spill.
ELECTRICAL
-40°C minimum to +50°C maximum operating temperature. RoHS compliant electronic Class I drivers expected life of 100,000 hours.
<1% failure rate >.9 power factor <20% total harmonic distortion 10kV surge protector.
Optional 1-10V dimmable driver, Zigbee wireless control module
CONTROL (OPTIONAL)
CONTROL-AVI-LVFA AVI-ON Bluetooth Mesh Controller.
MOUNTING
Robust designed yoke mount secured with 3/4” bolt, versatile mounting bracket.
Designed for ease of installation, 10° increment marking built on bracket offers precise horizontal and vertical aiming.
STANDARD FINISH
Black UV stabilized polyester powder paint finish.
CERTIFICATION
Meets Buy America Act requirements. IP65 Wet location label standard.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels. DLC® Premium (DesignLights Consortium Qualified).
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT
- 4000K
- 5000K
Lamp Source
- LED
Listings
- UL
- cETLus
Materials
- Die-Cast Aluminum
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- DLC Premium
- FCC
- IC
- IP65
- Made in America
- RoHS
- Wet
Static LED Color
- Blue
- Red
Voltage
- 100-277 V
- 12 V
- 24 V
- UNV
Warranty
- 5 yr
Weight
- 46 lbs
- 84 lbs
- 143 lbs
