New Product

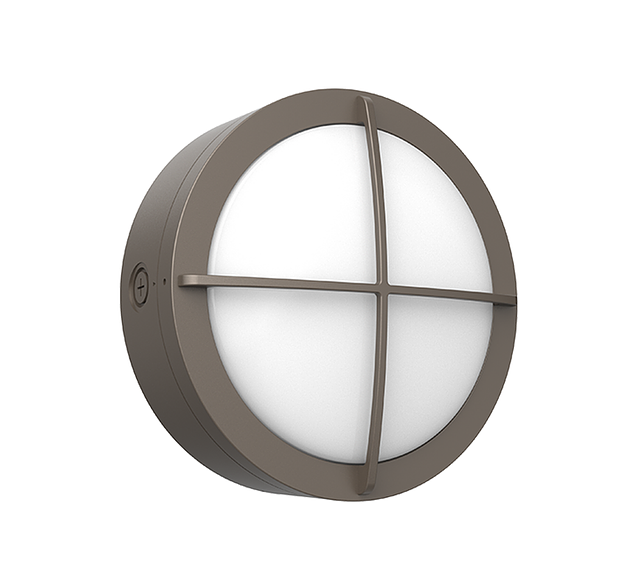

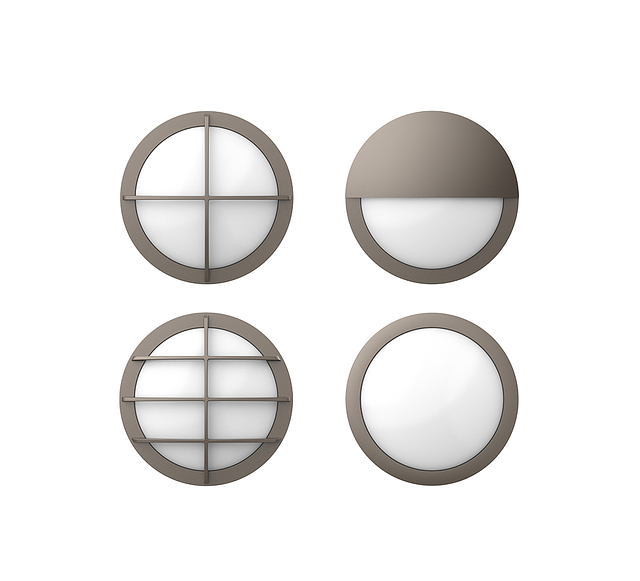

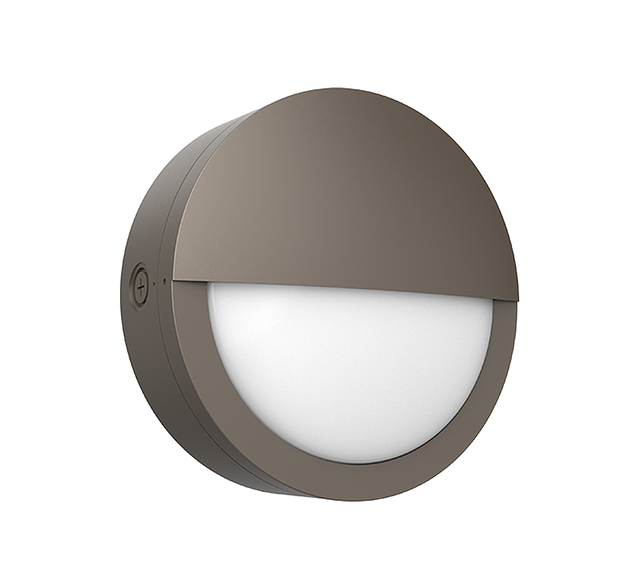

Bulkhead Round 12"
BKRA Bulkhead Round 12" fixture with die-cast aluminum housing provides durable, high-quality construction and is designed for effective heat dissipation to support reliable LED operation and long service life. Durable PC lens provides uniform light distribution for general outdoor and indoor lighting applications. Field selectable CCT from 3000K ~ 5000K via internal switch configuration. Driver operates at 120-277V input, 0-10V Dimming, with three adjustable wattage levels available for each model. IP65 rated for wet-location outdoor applications.
Resources
CONSTRUCTION
Die-cast aluminum housing provides durable, high-quality construction and is
designed for effective heat dissipation to support reliable LED operation and long
service life. Fixture is IP65 rated for wet-location outdoor applications.
OPTICS
Durable PC lens provides uniform light distribution for general outdoor and indoor
lighting applications. CCT and output selectable between 3000K ~ 5000K via
internal switch configuration.
ELECTRICAL
80+ CRI LED.
-40°C up to 45°C (-40°F up to 113°F) maximum operating temperature.
Driver operates at 120-277V input, 0-10V Dimming, 50/60Hz.
Three adjustable Wattage levels available for each model.
Integrated DC photocell included. Comes with 12V AUX.
Optional 10kV surge protector.
Optional Self-Diagnostic emergency back-up.
MOUNTING
Wall mount over electrical box or via surface conduit.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Black, Graphite Metallic, Gray, Silver, and White, or custom RAL#
CERTIFICATION
Wet Location listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipped with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Die-cast aluminum housing provides durable, high-quality construction and is
designed for effective heat dissipation to support reliable LED operation and long
service life. Fixture is IP65 rated for wet-location outdoor applications.
OPTICS
Durable PC lens provides uniform light distribution for general outdoor and indoor
lighting applications. CCT and output selectable between 3000K ~ 5000K via
internal switch configuration.
ELECTRICAL
80+ CRI LED.
-40°C up to 45°C (-40°F up to 113°F) maximum operating temperature.
Driver operates at 120-277V input, 0-10V Dimming, 50/60Hz.
Three adjustable Wattage levels available for each model.
Integrated DC photocell included. Comes with 12V AUX.
Optional 10kV surge protector.
Optional Self-Diagnostic emergency back-up.
MOUNTING
Wall mount over electrical box or via surface conduit.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Black, Graphite Metallic, Gray, Silver, and White, or custom RAL#
CERTIFICATION
Wet Location listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipped with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
CRI
- 80
Color / Finish
- Dark Bronze
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Efficacy
- 80
- 95
- 100
- 105
Emergency Options
- Emergency Battery Backup
Listings
- cULus
Lumens
- 1920
- 2280
- 2400
- 2520
- 2560
- 3040
- 3200
- 3360
- 3800
- 4000
- 4200
- 4560
- 4800
- 6000
- 6300
Materials
- Die-Cast Aluminum
Mounting
- Wall
Ratings & Compliance
- IP65
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 24
- 32
- 36
- 40
- 48
- 60
