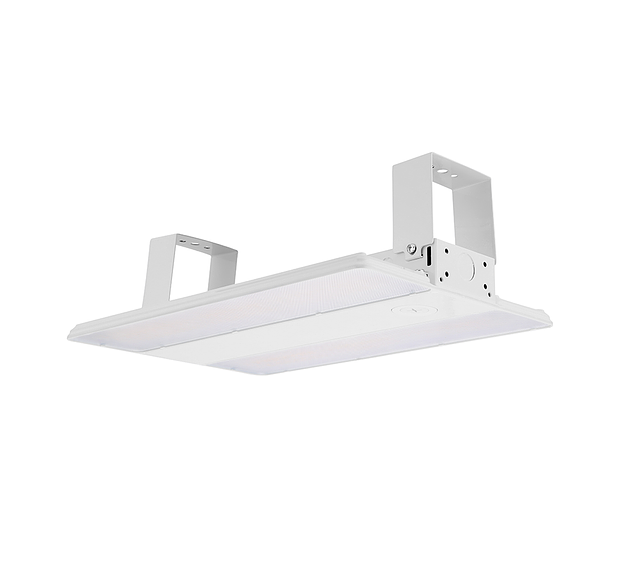

LHCA-G2 Low Bay
LHCA-G2 1K.1.png

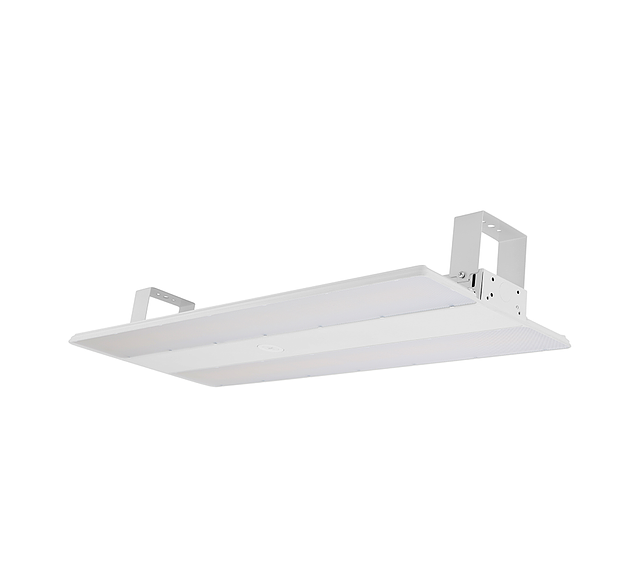

LHCA-G2 1K.2.pngLHCA-G2 Low Bay
New Product
Selectable Linear Bay Light
LHCA-G2 comes with a compact die-cast aluminum housing, a sturdy structure design, and field-selectable output and CCT. It features a >95% efficient, shatter-proof frosted polycarbonate lens and high-quality 80+ CRI LEDs rated for 100,000 hours at L70.Â
Resources
CONSTRUCTION
Compact die-cast aluminum housing, sturdy structure design, entire body serves as heat sink for the light engine. Includes top and side knockouts for simple and accessible wiring.
OPTICS
>95% efficiency polycarbonate shatter proof frosted lens.
ELECTRICAL
80+ CRI LED.
-40°C up to 55°C (-40°F up to 131°F) maximum operating temperature.
100,000 hr LEDs at L70 @ 25°C. 50/60Hz, <20% THD, >.95 Power Factor.
Driver operates at 120-277V input, 0-10V dimmable driver, down to 10%.
Plug-N-Play sensor socket standard (12V AUX). Optional 347/480V input.
SENSORS (OPTIONAL)
SENSOR-BLE-6-4T Integral PIR ALS Control bluetooth/on/off/dimming/photosensing.
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
SENSOR-DC-PIR AVI-ON PIR and Daylighting Sensor
MOUNTING
Adjustable aircraft cable hanger as standard mounting included.

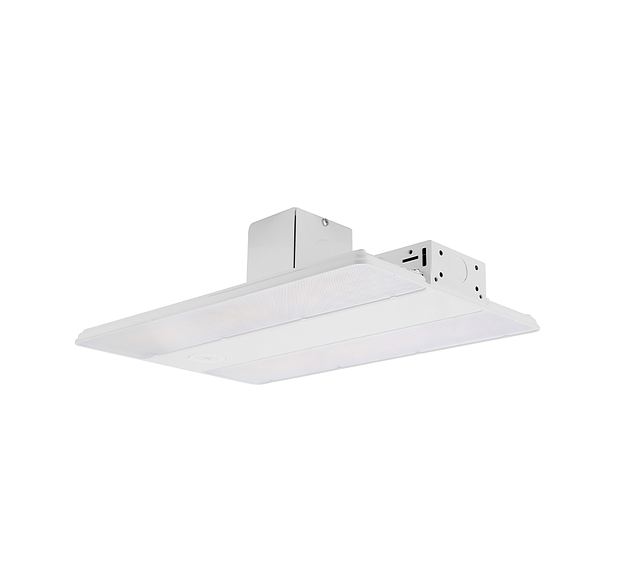

Optional: Pendant Mount Hub
Optional: Surface Mount Bracket (Pair)
STANDARD FINISH
All metal parts are post painted after fabrication with polyester powder coat paint with 90% reflectance.
CERTIFICATION
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards for damp location and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified)
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Compact die-cast aluminum housing, sturdy structure design, entire body serves as heat sink for the light engine. Includes top and side knockouts for simple and accessible wiring.
OPTICS
>95% efficiency polycarbonate shatter proof frosted lens.
ELECTRICAL
80+ CRI LED.
-40°C up to 55°C (-40°F up to 131°F) maximum operating temperature.
100,000 hr LEDs at L70 @ 25°C. 50/60Hz, <20% THD, >.95 Power Factor.
Driver operates at 120-277V input, 0-10V dimmable driver, down to 10%.
Plug-N-Play sensor socket standard (12V AUX). Optional 347/480V input.
SENSORS (OPTIONAL)
SENSOR-BLE-6-4T Integral PIR ALS Control bluetooth/on/off/dimming/photosensing.
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
SENSOR-DC-PIR AVI-ON PIR and Daylighting Sensor
MOUNTING
Adjustable aircraft cable hanger as standard mounting included.
Optional: Pendant Mount Hub
Optional: Surface Mount Bracket (Pair)
STANDARD FINISH
All metal parts are post painted after fabrication with polyester powder coat paint with 90% reflectance.
CERTIFICATION
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards for damp location and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified)
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Availability
- Quick Ship
CCT
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- White
Controls Options
- Bi-level Dimming
- Daylight Occupancy Sensor
- Daylight Sensor
- Motion Sensor
Dimming Protocol
- 0-10 V
Efficacy
- 140 lm/w
- 142 lm/w
- 144 lm/w
- 148 lm/w
- 149 lm/w
- 151 lm/w
- 158 lm/w
- 164 lm/w
- 166 lm/w
- 167 lm/w
- 171 lm/w
Lamp Source
- LED
Listings
- cULus
Lumens
- 8200 Lm
- 10600 Lm
- 14000 Lm
- 16400 Lm
- 18500 Lm
- 20000 Lm
- 24100 Lm
- 28000 Lm
- 30500 Lm
- 36100 Lm
- 42000 Lm
- 60600 Lm
Mounting
- Cable
- Pendant
- Surface
Ratings & Compliance
- Buy American Act (BAA)
- DLC Premium
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 347-480 V
Warranty
- 5 yr
Watts
- 52 w
- 64 w
- 78 w
- 82 w
- 96 w
- 100 w
- 104 w
- 120 w
- 123 w
- 128 w
- 130 w
- 150 w
- 160 w
- 164 w
- 180 w
- 200 w
- 205 w
- 240 w
- 246 w
- 250 w
- 300 w
- 328 w
- 410 w
