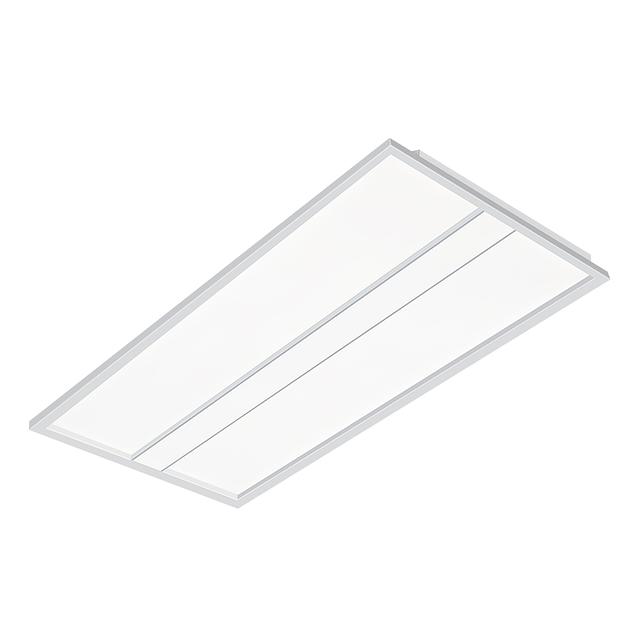

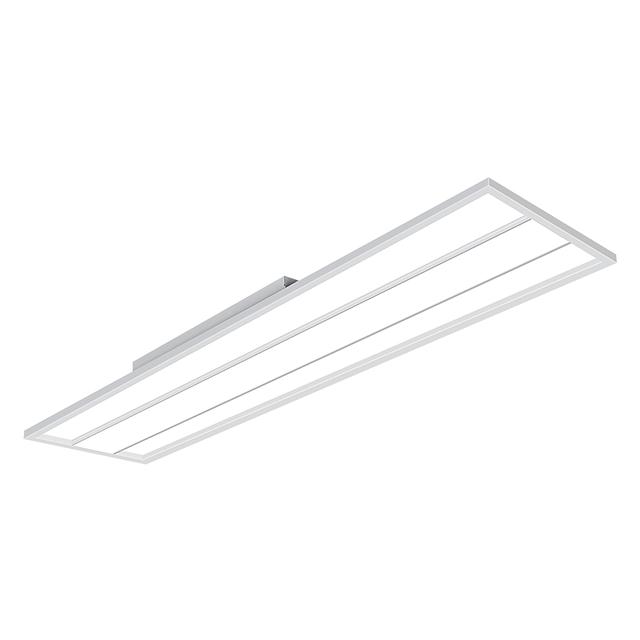

Backlit Troffer

CONSTRUCTION
Low profile extruded aluminum housing with durable white powder coat finish
provides long-term performance and a clean architectural appearance. Compact
design is ideal for shallow plenum spaces.

OPTICS
Backlit LED design provides uniform and soft illumination for a comfortable lighting
experience. Engineered to deliver consistent light distribution with excellent color
consistency across three selectable CCT options.

ELECTRICAL
80+ CRI LEDs.
Greater than 87.8% LED lumen maintenance at 50,000 hours based on IES LM-80
testing at 77°F (25 °C) ambient.
Operating Temp: -4°F ~ 104°F (-20°C ~ 40°C).
Driver operates at 110-277V input, 0-10V dimmable driver, down to 10%.
Power factor >0.9 and THD <20%.
Field-selectable wattage and CCT (3500K / 4000K / 5000K).

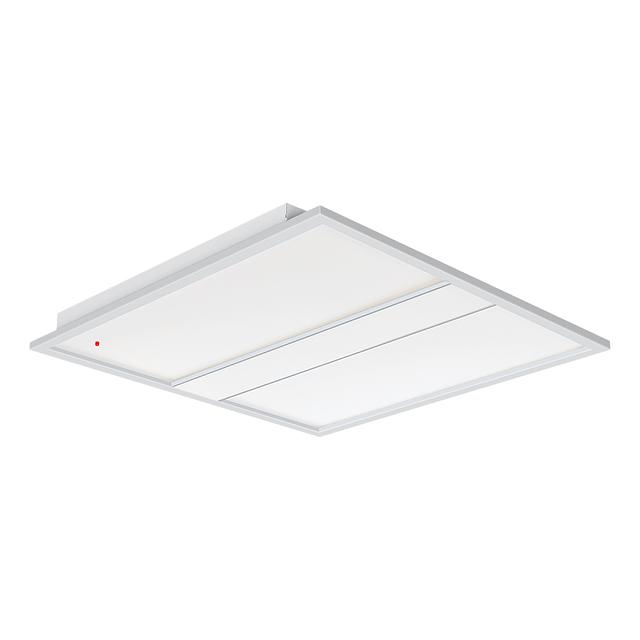

Optional emergency back-up battery - choice of on-panel or in-ceiling test switch.

SENSORS (OPTIONAL)
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
CONTROL-BLE-620 Bluetooth Wireless Fixture Controller for CCT Tuning,
Dimming, Grouping, Scheduling Features (ALS Control Mobile App)

MOUNTING
Designed to accommodate lay-in ceilings.
Surface mount applications, use surface kit accessories.

STANDARD FINISH
White powder coated finish.

CERTIFICATION
Meets Buy America Act requirements.
cULus Listed for Damp locations.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Standard (DesignLights Consortium Listed)

WARRANTY
5 year warranty, see Limited Warranty for additional information.
