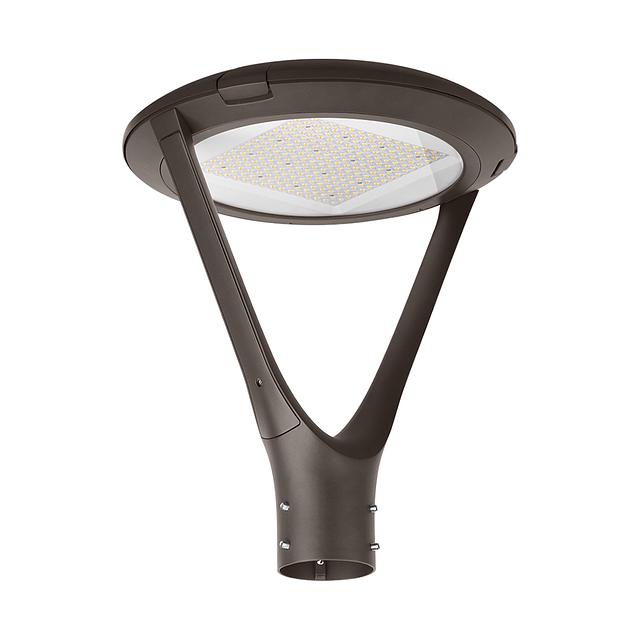

PTX 1K.2.jpg

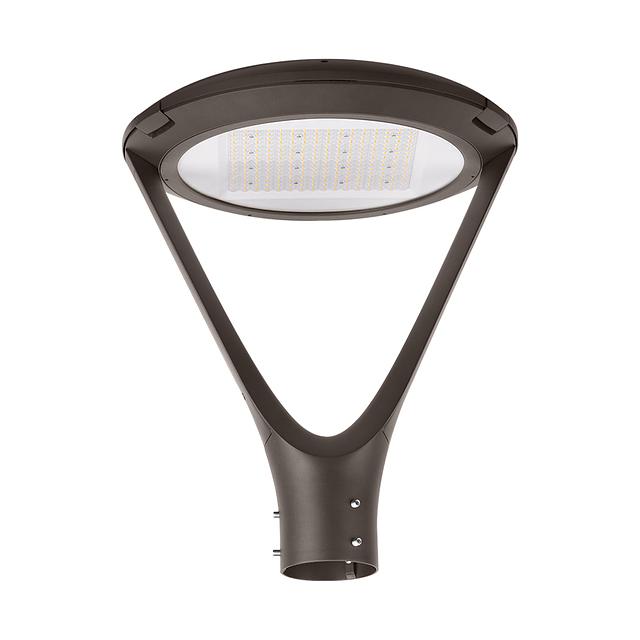

PTX 1K.3.jpg

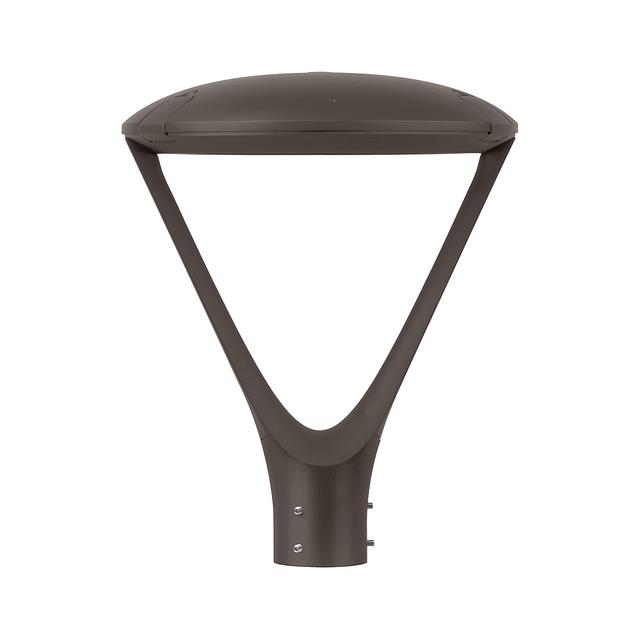

PTX 1K.4.jpg

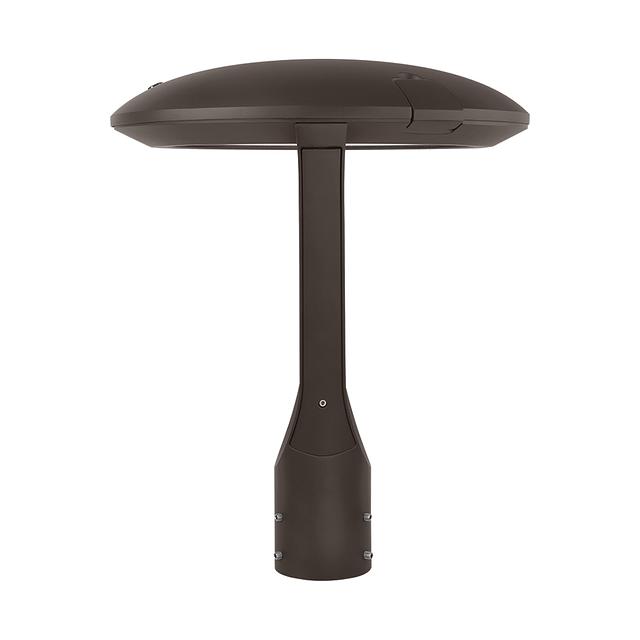

PTX 1K.5.jpg

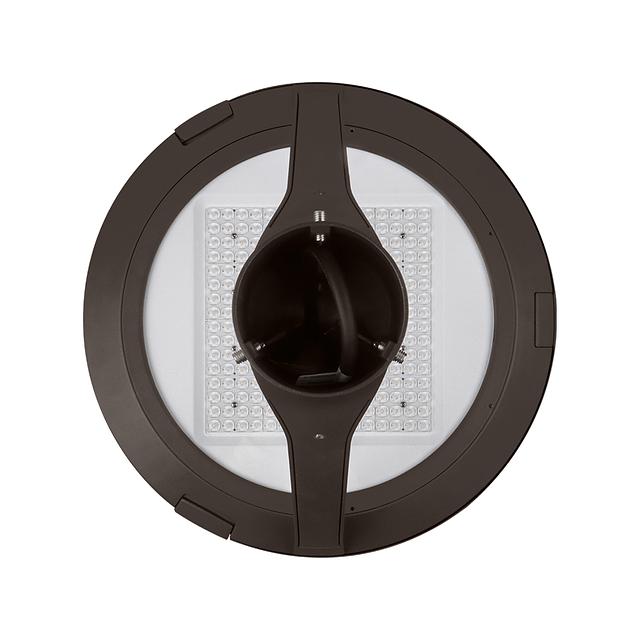

PTX 1K.6.jpgPTX
Decorative Post Top
PTX features a rugged die-cast aluminum housing with a durable powder coat finish for long-term, reliable performance. The low-glare optical design provides comfortable illumination, with optional 590nm amber turtle-friendly LED. Type II, III, IV, or V distributions are available, along with field selectable 3000K, 4000K, and 5000K CCT. Each model features three field selectable wattage levels with 70+ CRI. It operates from -30°C to 45°C (-22°F to 113°F) with 50/60Hz, <20% THD, and 0.9 power factor. The 120-277V driver offers 0-10V dimming down to 0%, with optional 200-480V input available. Wet location listed.
Resources
CONSTRUCTION
Rugged die-cast aluminum housing with a durable powder coat finish provides
long-term, reliable performance. Wet location listed.
OPTICS
Low-glare optical design provides comfortable illumination.
Optional amber 590nm turtle-friendly LED.
Optional external half glare shield.
Available with Type II, III, IV, or V light distribution.
Field Selectable CCT from 3000K, 4000K, and 5000K.
ELECTRICAL
70+ CRI LED.
Each model features three field selectable wattage options.
-30°C up to 45°C (-22°F up to 113°F) maximum operating temperature.
50/60Hz, <20% THD, 0.9 power factor.
Driver operates at 120-277V input, 0-10V dimmable driver, down to 0%.
Optional 200-480V input.
SENSORS (OPTIONAL)
SENSOR-SP19L PIR on/off/dimming/photosensing up to 25FT.
SENSOR-PH-PB-X-U Button style photocell.
MOUNTING
Suitable for 2-3/8” tenon top.
Optional for 4” and 5” tenon adapter.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Corrosion resistant Black, Graphite Metallic, Gray, Silver, White, Custom RAL#.
CERTIFICATION
Wet location label standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
DLC® Premium (DesignLights Consortium Qualified).
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Rugged die-cast aluminum housing with a durable powder coat finish provides
long-term, reliable performance. Wet location listed.
OPTICS
Low-glare optical design provides comfortable illumination.
Optional amber 590nm turtle-friendly LED.
Optional external half glare shield.
Available with Type II, III, IV, or V light distribution.
Field Selectable CCT from 3000K, 4000K, and 5000K.
ELECTRICAL
70+ CRI LED.
Each model features three field selectable wattage options.
-30°C up to 45°C (-22°F up to 113°F) maximum operating temperature.
50/60Hz, <20% THD, 0.9 power factor.
Driver operates at 120-277V input, 0-10V dimmable driver, down to 0%.
Optional 200-480V input.
SENSORS (OPTIONAL)
SENSOR-SP19L PIR on/off/dimming/photosensing up to 25FT.
SENSOR-PH-PB-X-U Button style photocell.
MOUNTING
Suitable for 2-3/8” tenon top.
Optional for 4” and 5” tenon adapter.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Corrosion resistant Black, Graphite Metallic, Gray, Silver, White, Custom RAL#.
CERTIFICATION
Wet location label standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
DLC® Premium (DesignLights Consortium Qualified).
WARRANTY
5 year warranty, see Limited Warranty for additional information.
CCT
- 3000K
- 4000K
- 5000K
CRI
- 70
Color / Finish
- Black
- Dark Bronze
- White
Controls Options
- PIR Sensor
Dimming Protocol
- 0-10 V
Distribution
- Type II
- Type III
- Type IV
- Type V
Efficacy
- 140
- 141
- 145
- 152
- 156
- 165
- 169
- 175
Emergency Options
- Emergency Battery Backup
Lamp Source
- LED
Listings
- cULus
Lumens
- 5150
- 7700
- 8400
- 9000
- 9600
- 10050
- 12200
- 13050
- 15900
- 15950
- 16800
- 17750
- 18450
- 18800
- 19150
Materials
- Die-Cast Aluminum
Ratings & Compliance
- Buy American Act (BAA)
- Turtle Safe
- Wet
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 33
- 53
- 63
- 76
- 105
- 125
