ARD-G2

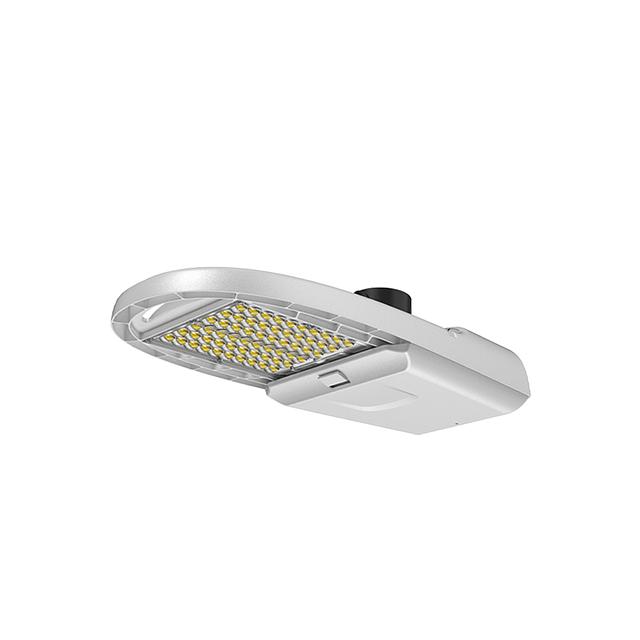

ARD-G2 1K.2.jpg

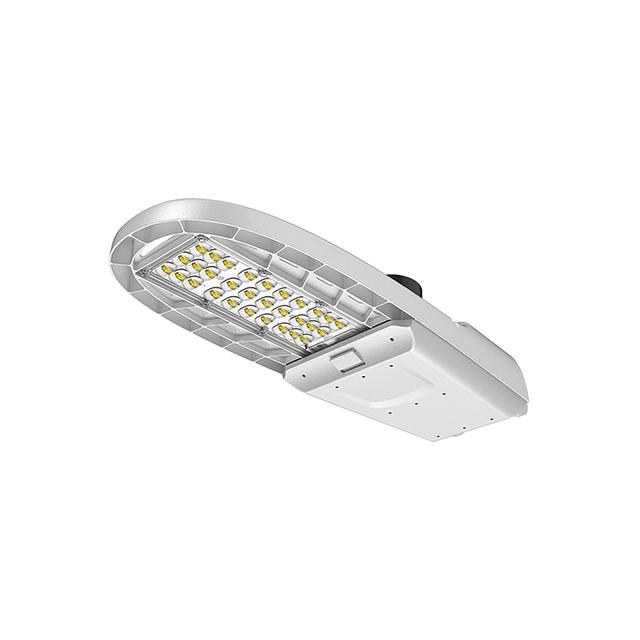

ARD-G2 1K.3.jpgARD-G2
New Product
Roadway Gen 2
The ARD-G2 Roadway features a rugged die-cast aluminum housing with a removable door. Low-profile design is 3G vibration rated to ensure structural strength and minimize wind load requirements. The LED lens housing is completely sealed against moisture and environmental contaminants. Each model features four field-selectable wattage levels and selectable CCT options of 3000K, 4000K, and 5000K. Standard 3-pin NEMA photocell included. Wet location listed.
Resources
CONSTRUCTION
Rugged die-cast aluminum housing with removable door. Low profile, 3G vibration rated
to ensure the stength of construction and minimize wind load requirements. LED lens
housing is completely sealed against moisture and environmental contaminants.
Wet location listed.
OPTICS
Available in Type II, III, and IV distributions.
Optics are precisely designed to shape the distribution, maximizing efficiency and
application spacing.
ELECTRICAL
70+ CRI LED.
-40°C up to 40°C (-40°F up to 104°F) maximum operating temperature.
Long-life 100,000 hr LED at L70 @ 25°C.
Driver operates at 120-277V input, 0-10V dimmable driver, 10-100% dimming range.
50/60Hz, <11% THD, 0.9 power factor.
Four field selectable wattage levels for each model.
CCT options from 3000K, 4000K, and 5000K.
Standard 3-PIN NEMA Photocell.
Optional 277-480V input.
SENSORS (OPTIONAL)
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
SENSOR-BLE-6-4T Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming/
photosensing.
CONTROL-AVI-ON Bluetooth Mesh Controller.
MOUNTING
Compatible with mast arm 1-5/8” ~ 2-3/8” OD.
STANDARD FINISH
Corrosion resistant Silver Gray powder coating finish.
CERTIFICATION
Wet location label standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Rugged die-cast aluminum housing with removable door. Low profile, 3G vibration rated
to ensure the stength of construction and minimize wind load requirements. LED lens
housing is completely sealed against moisture and environmental contaminants.
Wet location listed.
OPTICS
Available in Type II, III, and IV distributions.
Optics are precisely designed to shape the distribution, maximizing efficiency and
application spacing.
ELECTRICAL
70+ CRI LED.
-40°C up to 40°C (-40°F up to 104°F) maximum operating temperature.
Long-life 100,000 hr LED at L70 @ 25°C.
Driver operates at 120-277V input, 0-10V dimmable driver, 10-100% dimming range.
50/60Hz, <11% THD, 0.9 power factor.
Four field selectable wattage levels for each model.
CCT options from 3000K, 4000K, and 5000K.
Standard 3-PIN NEMA Photocell.
Optional 277-480V input.
SENSORS (OPTIONAL)
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
SENSOR-BLE-6-4T Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming/
photosensing.
CONTROL-AVI-ON Bluetooth Mesh Controller.
MOUNTING
Compatible with mast arm 1-5/8” ~ 2-3/8” OD.
STANDARD FINISH
Corrosion resistant Silver Gray powder coating finish.
CERTIFICATION
Wet location label standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
CCT
- 3000K
- 4000K
- 5000K
CRI
- 70
Color / Finish
- Silver Gray
Controls Options
- PIR Sensor
Dimming Protocol
- 0-10 V
Efficacy
- 154
- 162
- 173
Listings
- cULus
Lumens
- 7400
- 10200
- 12800
- 14700
- 15500
- 20500
- 21800
- 25600
- 30400
- 31000
- 37800
- 46200
Ratings & Compliance
- Buy American Act (BAA)
- Wet
Voltage
- 120-277 V
- 277-480 V
Watts
- 41
- 61
- 81
- 101
- 121
- 161
- 181
- 201
- 241
- 301
