New Product

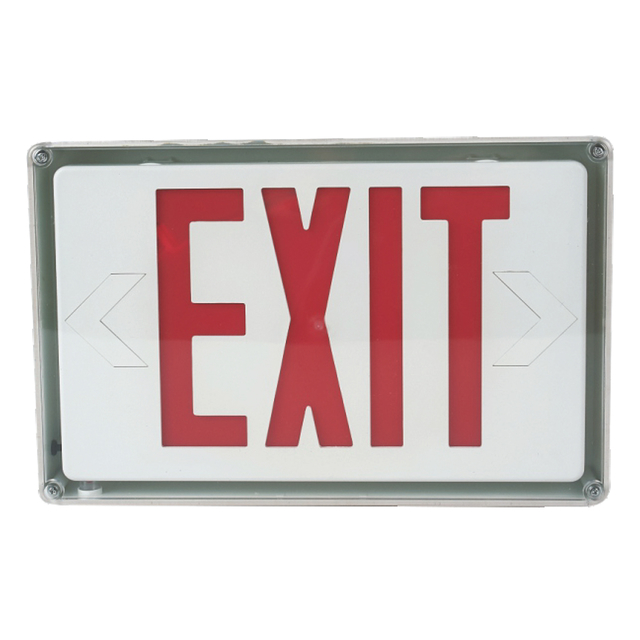

Wet Location EXIT Sign
Wall Mounted wet location EXIT sign, featuring Water Proof enclosure, Red EXIT color, 90 minute battery.
Resources
CONSTRUCTION
Engineering grade injection-molded thermoplastic. 5VA flame retardant, impact resistant water tight housing.
OPTICS
Red “EXIT”. (optional knockout arrows)
ELECTRICAL
Smart voltage input 120-277 VAC operation. LED display indicates AC/ON.
An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Built-in 4.8V700mAH rechargeable Ni-cd battery for minimum 90 minutes emergency operation.
0°C up to 40°C (32°F up to 104°F) maximum operating temperature. Designed
for an expected life of 50,000 hours.
MOUNTING
Wall Mount through housing.
STANDARD FINISH
White finish.
CERTIFICATION
Wet Location.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
All luminaires are built to UL924 standards and bear appropriate cULus labels.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Engineering grade injection-molded thermoplastic. 5VA flame retardant, impact resistant water tight housing.
OPTICS
Red “EXIT”. (optional knockout arrows)
ELECTRICAL
Smart voltage input 120-277 VAC operation. LED display indicates AC/ON.
An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Built-in 4.8V700mAH rechargeable Ni-cd battery for minimum 90 minutes emergency operation.
0°C up to 40°C (32°F up to 104°F) maximum operating temperature. Designed
for an expected life of 50,000 hours.
MOUNTING
Wall Mount through housing.
STANDARD FINISH
White finish.
CERTIFICATION
Wet Location.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
All luminaires are built to UL924 standards and bear appropriate cULus labels.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Color / Finish
- White
Dimensions
- H: 3 In. L: 14 In. W: 9 In.
Emergency Options
- Integral EM Battery
Lamp Source
- LED
Listings
- cULus
Materials
- Polycarbonate
- Thermoplastic
Mounting
- Wall
Ratings & Compliance
- Assembled in America
- Buy America
- Buy American Act (BAA)
- Wet
Shape
- Rectangular
Special Programs
- Quick Ship
Static LED Color
- Red
Voltage
- 120-277 V
Warranty
- 5 yr
Weight
- 5 lbs
