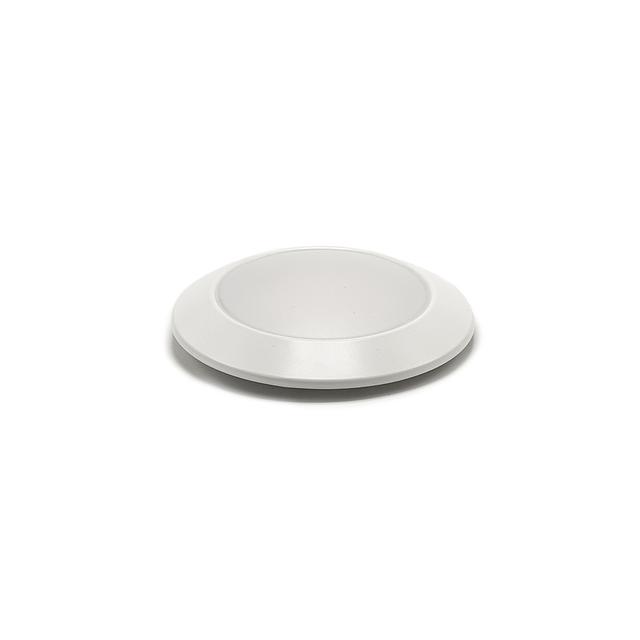

DL
Wet Location Downlight
DL is a low-profile, energy-efficient LED downlight with a durable aluminum body and polycarbonate lens. It provides uniform illumination and is compatible with standard incandescent dimmers. The wet location label and 5 year warranty provide added peace of mind.
Resources
CONSTRUCTION
Ultra low profile stamped aluminum body, entire fixture serves as heat sink for exceptional thermal management.
OPTICS
Drop down diffuse impact resistant polycarbonate lens offer glare-free uniform illumination. Lens sealed with body to prevent dirty and splash of water from entry.
ELECTRICAL
90+ CRI high efficacy LED light engine secured on aluminum body.
120V, 50/60Hz input Standard Model: Static CCT SC Model: Selectable CCT 2700~5000K.
Continuous dimming to 10% with standard incandescent dimmer with LED rated dimmers. Greater than 70% LED lumen maintenance at 50,000 hours.
MOUNTING
New Construction: Install onto standard Single Gang, 3” or 4” Round or Square J-Box.
Retrofit: Install onto standard Single Gang, 3” or 4” Round or Square J-Box, or use with 5” or 6” recessed cans with torsion spring clips included. (SC Models)
STANDARD FINISH
Corrosion resistant matte White powder coating finish.
CERTIFICATION
Wet location label standard. All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
FCC Certified. Energy Star Certified. Title 24 Compliant.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Ultra low profile stamped aluminum body, entire fixture serves as heat sink for exceptional thermal management.
OPTICS
Drop down diffuse impact resistant polycarbonate lens offer glare-free uniform illumination. Lens sealed with body to prevent dirty and splash of water from entry.
ELECTRICAL
90+ CRI high efficacy LED light engine secured on aluminum body.
120V, 50/60Hz input Standard Model: Static CCT SC Model: Selectable CCT 2700~5000K.
Continuous dimming to 10% with standard incandescent dimmer with LED rated dimmers. Greater than 70% LED lumen maintenance at 50,000 hours.
MOUNTING
New Construction: Install onto standard Single Gang, 3” or 4” Round or Square J-Box.
Retrofit: Install onto standard Single Gang, 3” or 4” Round or Square J-Box, or use with 5” or 6” recessed cans with torsion spring clips included. (SC Models)
STANDARD FINISH
Corrosion resistant matte White powder coating finish.
CERTIFICATION
Wet location label standard. All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
FCC Certified. Energy Star Certified. Title 24 Compliant.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 90 CRI
Color / Finish
- White
Dimming Range
- 10%
Efficacy
- 80 lm/w
Lamp Life
- 50000 hrs
Lamp Source
- LED
Listings
- cETLus
Lumens
- 879 Lm
- 1100 Lm
- 1208 Lm
Materials
- Aluminum
- Metal
- Polycarbonate
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- Energy Star
- FCC
- JA8
- Made in America
- Title 24
- Wet
Special Programs
- Quick Ship
Static LED Color
- Red
- White
Voltage
- 120 V
Warranty
- 5 yr
Watts
- 10 w
- 15 w
Weight
- 4 lbs
- 11 lbs
- 12 lbs
