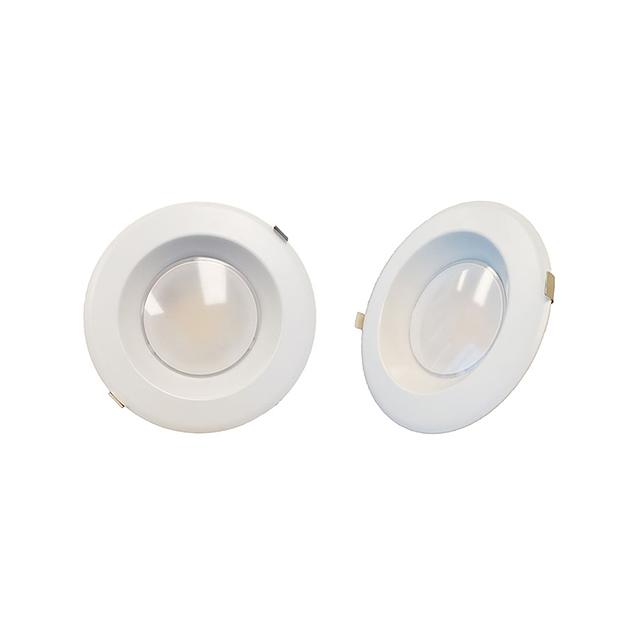

DLA
DLA.1K.1.jpgDLA
Selectable Downlight
DLA is a durable and long-lasting lighting product designed for general illumination applications. It features a die-cast aluminum body, impact-resistant diffuse polycarbonate lens, and 90+ CRI LEDs. The luminaire is gasketed and sealed to prevent splash of water or dust entry, and it comes with a 5-year warranty. It is Energy Star Certified, damp location labeled, and Title 24 Compliant.
Resources
CONSTRUCTION
Die-cast aluminum body, entire luminare as heat dissipation system, designed for general illumination application for long life and service period.
OPTICS
Impact resistant diffuse polycarbonate lens, gasketed and sealed prevent splash of water or dust object from entry.
ELECTRICAL
90+ CRI LEDs. 120-277V Input, 0-10V dimming. CCT and Lumen Selectable Function. Greater than 70% LED lumen maintenance at 50,000 hours.
CONTROL (OPTIONAL)
CONTROL-XFAC AVI-ON Bluetooth Zone Controller Adapter
MOUNTING
New Construction: Flat torsion spring clips design to hold luminaire in place without using a housing. 12” Flex came with fixture for easy wiring with j-box.
STANDARD FINISH
Corrosion resistant matte White finish.
CERTIFICATION
Damp location label standard. All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
FCC Certified. Energy Star Certified. Title 24 Compliant.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Die-cast aluminum body, entire luminare as heat dissipation system, designed for general illumination application for long life and service period.
OPTICS
Impact resistant diffuse polycarbonate lens, gasketed and sealed prevent splash of water or dust object from entry.
ELECTRICAL
90+ CRI LEDs. 120-277V Input, 0-10V dimming. CCT and Lumen Selectable Function. Greater than 70% LED lumen maintenance at 50,000 hours.
CONTROL (OPTIONAL)
CONTROL-XFAC AVI-ON Bluetooth Zone Controller Adapter
MOUNTING
New Construction: Flat torsion spring clips design to hold luminaire in place without using a housing. 12” Flex came with fixture for easy wiring with j-box.
STANDARD FINISH
Corrosion resistant matte White finish.
CERTIFICATION
Damp location label standard. All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
FCC Certified. Energy Star Certified. Title 24 Compliant.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Aperture
- 4 In.
- 6 In.
- 8 In.
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 90 CRI
Color / Finish
- White
Dimensions
- L: 6 In.
- L: 9 In.
- L: 11 In.
- W: 6 In.
- W: 9 In.
- W: 11 In.
- H: 3 In.
- H: 5 In.
Dimming Protocol
- 0-10 V
Lamp Life
- 50000 hrs
Lamp Source
- LED
Listings
- UL
- cETLus
Lumens
- 600 Lm
- 850 Lm
- 900 Lm
- 1035 Lm
- 1050 Lm
- 1350 Lm
- 1361 Lm
- 1750 Lm
- 1950 Lm
- 2061 Lm
- 2250 Lm
- 2730 Lm
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- Damp
- Energy Star
- FCC
- IC
- JA8
- Made in America
- Title 24
Special Programs
- Quick Ship
Static LED Color
- Blue
- White
Voltage
- 100-277 V
- 110-277 V
- 120-277 V
- 347 V
Warranty
- 5 yr
Watts
- 7 w
- 10 w
- 12 w
- 13 w
- 15 w
- 20 w
- 22 w
- 30 w
Weight
- 2 lbs
