DLA-G2
DLA-G2_1k.3.jpgDLA-G2
New Product

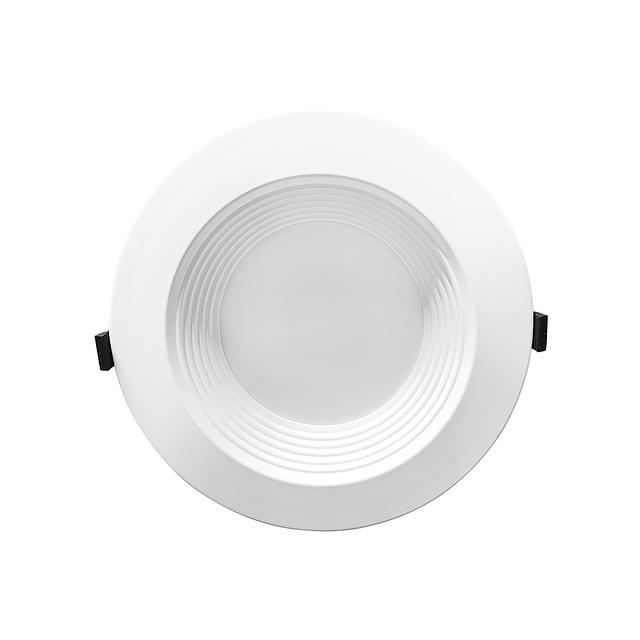

Highly efficient downlight product designed for general illumination applications. It features a die-cast aluminum body, impact-resistant diffused polycarbonate lens, and 90+ CRI LEDs. The luminaire is gasketed and sealed to prevent splash of water or dust entry, and it comes with a 5-year warranty. Energy Star Certified, Wet Location, and Title 24 Compliant.
Resources
CONSTRUCTION
Die-cast aluminum body, available in 4”, 6”, 8” & 10” aperture. Entire luminaire as heat dissipation system, designed for general illumination application for long life and service period.
IC rated for direct contact with insulation.
OPTICS
Impact resistant diffuse polycarbonate lens, gasketed and sealed prevents splash of water or dust objects from entry.
ELECTRICAL
90+ CRI LEDs.
120-277V Input, 0-10V dimming.

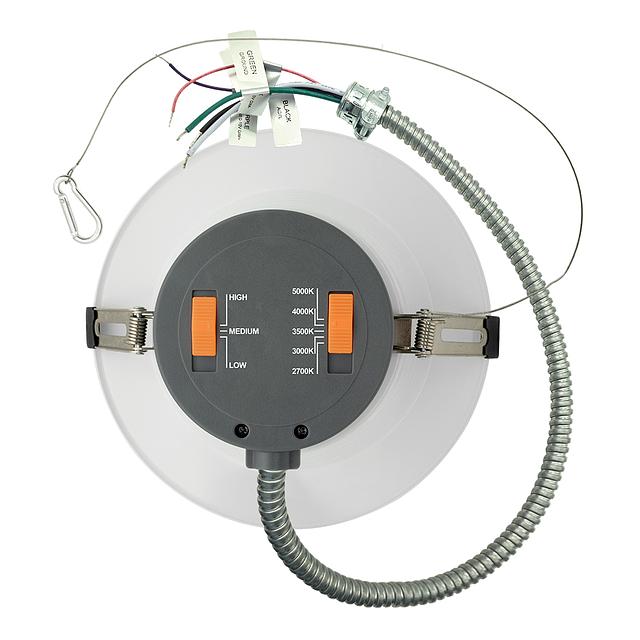

CCT and Lumen Selectable Function.
Greater than 70% LED lumen maintenance at 50,000 hours.
Optional External Emergency Battery 120-277V Input
CONTROL (OPTIONAL)
CONTROL-XFAC AVI-ON Bluetooth Zone Controller Adapter
MOUNTING
New Construction: Flat torsion spring clips design to hold luminaire in place without using a housing.
New Construction: Mounting Frame available.
12” Flex conduit came with fixture for easy wiring with j-box.
STANDARD FINISH
Corrosion resistant matte White finish.
CERTIFICATION
Wet location standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
Energy Star Certified.
California JA8, Title 24 Compliant
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Die-cast aluminum body, available in 4”, 6”, 8” & 10” aperture. Entire luminaire as heat dissipation system, designed for general illumination application for long life and service period.
IC rated for direct contact with insulation.
OPTICS
Impact resistant diffuse polycarbonate lens, gasketed and sealed prevents splash of water or dust objects from entry.
ELECTRICAL
90+ CRI LEDs.
120-277V Input, 0-10V dimming.
CCT and Lumen Selectable Function.
Greater than 70% LED lumen maintenance at 50,000 hours.
Optional External Emergency Battery 120-277V Input
CONTROL (OPTIONAL)
CONTROL-XFAC AVI-ON Bluetooth Zone Controller Adapter
MOUNTING
New Construction: Flat torsion spring clips design to hold luminaire in place without using a housing.
New Construction: Mounting Frame available.
12” Flex conduit came with fixture for easy wiring with j-box.
STANDARD FINISH
Corrosion resistant matte White finish.
CERTIFICATION
Wet location standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
Energy Star Certified.
California JA8, Title 24 Compliant
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Aperture
- 4 In.
- 6 In.
- 8 In.
- 10 In.
Beam Angle
- 90
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 90 CRI
Color / Finish
- White
Dimensions
- H: 3.62 In. L: 5.12 In. W: 5.12 In.
- H: 4.56 In. L: 8.43 In. W: 8.43 In.
- H: 4.93 In. L: 10 In. W: 10 In.
- H: 5.29 In. L: 11.38 In. W: 11.38 In.
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Distribution
- Wide
Efficacy
- 115 lm/w
Emergency Options
- Remote EM Battery
Installation Type
- New Construction
Integrated Brands
- Avi-on
Lamp Life
- 50000 hrs
Listings
- cETLus
Lumens
- 1159 Lm
- 2194 Lm
- 3273 Lm
- 3892 Lm
Materials
- Aluminum
- Polycarbonate
Ratings & Compliance
- Buy American Act (BAA)
- Energy Star
- IC
- JA8
- Wet
Trim Finish
- White
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 12 w
- 22 w
- 30 w
- 38 w
Weight
- 2 lbs
- 3 lbs
- 4 lbs
