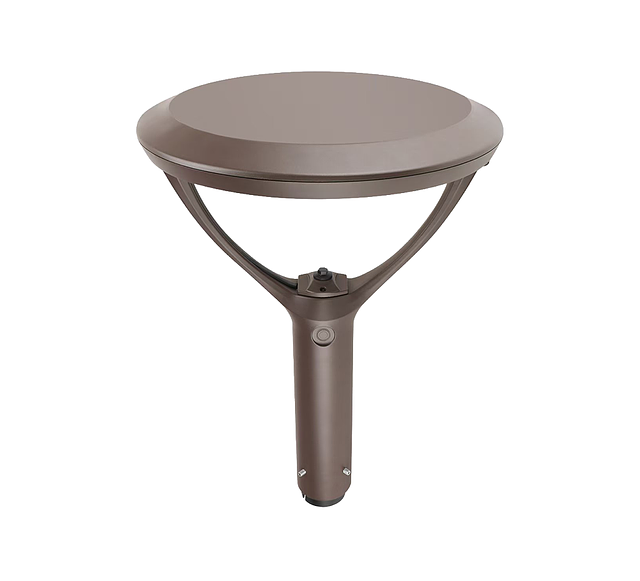

Distribution Selectable Post Top

CONSTRUCTION
Low copper aluminum alloy die-cast body. Architectural appearance, low EPA wind load design. IK09 rated enclosure protects electrical equipment against external mechanical impacts. All external fasteners are stainless steel.
EPA: 0.34 sq/ft

OPTICS
Dark-Sky compliant distribution.
Light engines are available in 3000K ~ 5000K (80 CRI) selectable.
Distribution pattern field selectable between Type III, IV and V.
Molded silicone gasket throughout insures the sealing between the two compartments and provides ingress protection.
Polycarbonate lens offers exceptional light distribution and durability.
Optional Comfort lens for maximum glare reduction and visual comfort.

ELECTRICAL
80+ CRI LED.

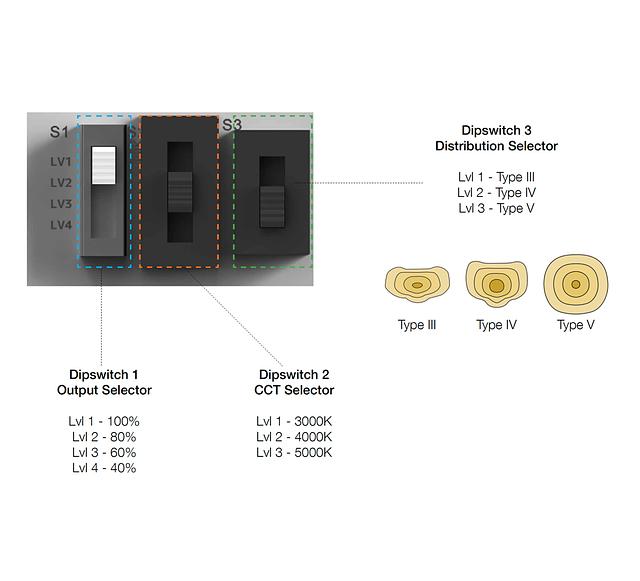

CCT / Output / Distribution pattern field selectable - reference Ordering Information.
-40°C up to 45°C* (-40°F up to 113°F) maximum operating temperature.
L70 @ 25C > 100,000hrs
50/60Hz, <20% THD, 0.9 power factor.
Built-in photocell w/cap.
Built-in 12V AUX socket for SENSOR-ANT / BLE Plug-N-Play sensor.
Driver operates at 120-277V input, 0-10V dimmable driver, down to 10%.
Optional 347/480V input.

SENSORS (OPTIONAL)
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
SENSOR-BLE-6-4T Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming/photosensing.
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.

MOUNTING
Suitable for 3” tenon, 2-3/8” tenon adapter included.
Optional for 4” and 5” tenon adapter.

STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.

CUSTOM FINISH
Corrosion resistant Black, Graphite Metallic, Gray, Silver, White, Custom RAL#.

CERTIFICATION
IP66 Wet location label standard.
Meets Buy America Act requirements.
IDA compliant: with 3000K color temperature selection.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.

WARRANTY
5 year warranty, see Limited Warranty for additional information.
