AL2A-G2

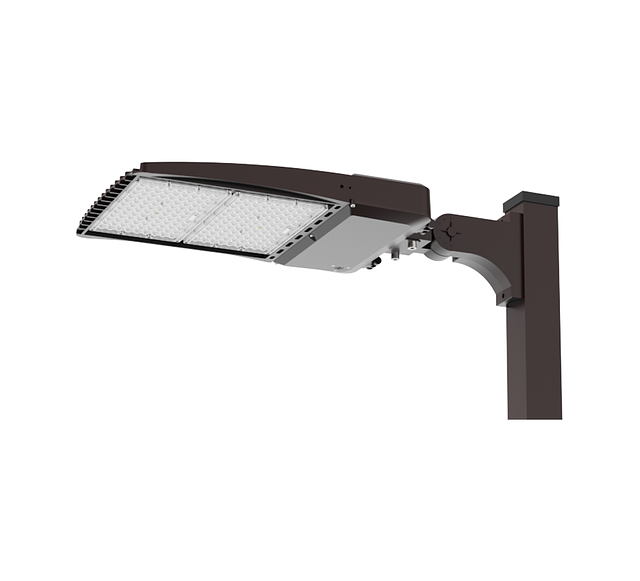

AL2A-G2_pole_mount 1k.pngAL2A-G2
New Product
Area Light
The AL2A-G2 Series is an IP65 wet location listed high-performance LED Area Light with die-cast aluminum housing and hinged die-cast aluminum door. It features a low profile, 3G vibration rated compact design that minimizes wind load requirements. Driver enclosure cover opens downwards, completely sealed against moisture and dust.
Resources
CONSTRUCTION
Die-cast aluminum housing with hinged die-cast aluminum door.
Low profile, 3G vibration rated compact design minimizes wind load requirements.
Driver enclosure cover opens downwards, completely sealed against moisture and dusty.
OPTICS
UV-resistant polycarbonate optics, available in Type II, III, IV, V distributions.
Full cutoff “U - 0” when mounted with 0 degrees tilt. Optics is precisely designed to shape
the distribution, maximizing efficiency and application spacing.
ELECTRICAL
80 CRI Lumileds LED.
Field Selectable Lumen / CCT Technology.
-40°C up to 50°C (-40°F up to 122°F) maximum ambient temperature.
Long-life 100,000 hr LED at L70 @ 40°C.
Driver operates at 120-277V input, 0-10V dimmable driver, down to 10%.
50/60Hz, <20% THD, 0.9 power factor.
Optional 347/480V input.
Optional 10kV surge protection.
Optional dimming sensor for occupancy and photosensing.
SENSORS (OPTIONAL)
SENSOR-BLE-6-4T Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming/photosensing.
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
SENSOR-PH-PB-U Integral button style photocell.
SENSOR-PH-PT-U/UD/HD Twist lock dimming/non-dimming photocontrol.
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
MOUNTING
Tilt-able pole mount bracket (SRT) suitable for both round and square pole.
Optional slipfitter for 2-3/8” tenon (SF), adjustable trunnion mount (TR).
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Corrosion resistant Black, Graphite Metallic, Gray, Silver, White, Custom RAL#.
CERTIFICATION
IP65 Wet location label standard.
Meets Buy America Act requirements.
IDA compliant: with 3000K color temperature selection.
Title 24 compliant; see local ordinance for qualification information.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
CE Complaince, DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Die-cast aluminum housing with hinged die-cast aluminum door.
Low profile, 3G vibration rated compact design minimizes wind load requirements.
Driver enclosure cover opens downwards, completely sealed against moisture and dusty.
OPTICS
UV-resistant polycarbonate optics, available in Type II, III, IV, V distributions.
Full cutoff “U - 0” when mounted with 0 degrees tilt. Optics is precisely designed to shape
the distribution, maximizing efficiency and application spacing.
ELECTRICAL
80 CRI Lumileds LED.
Field Selectable Lumen / CCT Technology.
-40°C up to 50°C (-40°F up to 122°F) maximum ambient temperature.
Long-life 100,000 hr LED at L70 @ 40°C.
Driver operates at 120-277V input, 0-10V dimmable driver, down to 10%.
50/60Hz, <20% THD, 0.9 power factor.
Optional 347/480V input.
Optional 10kV surge protection.
Optional dimming sensor for occupancy and photosensing.
SENSORS (OPTIONAL)
SENSOR-BLE-6-4T Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming/photosensing.
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
SENSOR-PH-PB-U Integral button style photocell.
SENSOR-PH-PT-U/UD/HD Twist lock dimming/non-dimming photocontrol.
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
MOUNTING
Tilt-able pole mount bracket (SRT) suitable for both round and square pole.
Optional slipfitter for 2-3/8” tenon (SF), adjustable trunnion mount (TR).
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CUSTOM FINISH
Corrosion resistant Black, Graphite Metallic, Gray, Silver, White, Custom RAL#.
CERTIFICATION
IP65 Wet location label standard.
Meets Buy America Act requirements.
IDA compliant: with 3000K color temperature selection.
Title 24 compliant; see local ordinance for qualification information.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
CE Complaince, DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Black
- Dark Bronze
- Graphite Metallic
- Silver
- White
Dimensions
- H: 5 In. L: 17 In. W: 13 In.
- H: 5 In. L: 24 In. W: 13 In.
- H: 6 In. L: 28 In. W: 17 In.
Dimming Protocol
- 0-10 V
Distribution
- Type II
- Type III
- Type IV
- Type V
Efficacy
- lm/w
- 155 lm/w
- 160 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- CE
- ETL
Lumens
- 11625 Lm
- 15500 Lm
- 18600 Lm
- 23250 Lm
- 24800 Lm
- 31000 Lm
- 37200 Lm
- 49600 Lm
- 51200 Lm
- 56000 Lm
- 64000 Lm
- 72000 Lm
Mounting
- Pole
- Slip Fitter
Ratings & Compliance
- Assembled in America
- DLC Premium
- DarkSky Approved
- IP65
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- w
- 75 w
- 100 w
- 120 w
- 150 w
- 160 w
- 200 w
- 240 w
- 320 w
- 350 w
- 400 w
- 450 w
Weight
- 9 lbs
- 13 lbs
- 18 lbs
