TREA
Selectable LED Troffer

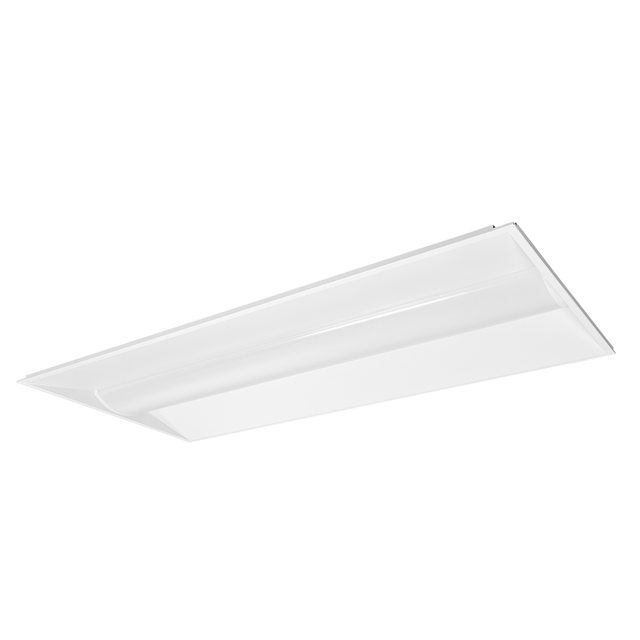

The TREA lighting product features a 22-gauge metal frame, 95% reflective white polyester powder coat, and rounded corners for safe handling. A backlit curved design provides exceptional lighting distribution, while a frosted polycarbonate lens ensures edge-to-edge smooth illumination. Long-life LEDs and a high-efficiency driver ensure superior illumination and extended service life. The luminaire is easy to install and suitable for lay-in ceilings, T-grid suspension systems, and surface mount applications. A 5-year warranty is included.
Resources
CONSTRUCTION
22-gauge metal frame, 95% reflective white polyester powder coat bonded to phosphate-free multi-stage pretreated metal.
All parts painted after fabrication to facilitate installation, increase efficiency and inhibit corrosion. All corners are rounded for safe handling.
Multiple wiring entrances on driver enclosure for easy access. Integral T-bar clips for installation into T-grid ceilings
22-gauge metal frame, 95% reflective white polyester powder coat bonded to phosphate-free multi-stage pretreated metal.
All parts painted after fabrication to facilitate installation, increase efficiency and inhibit corrosion. All corners are rounded for safe handling.
Multiple wiring entrances on driver enclosure for easy access. Integral T-bar clips for installation into T-grid ceilings
OPTICS
Backlit curved design provides exceptional lighting distribution. Frosted polycarbonate lens offers edge to edge smooth illumination for maximum visual comfort.
Backlit curved design provides exceptional lighting distribution. Frosted polycarbonate lens offers edge to edge smooth illumination for maximum visual comfort.
ELECTRICAL
Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life.
Greater than 70% LED lumen maintenance at 60,000 hours (L70>60,000). Selectable lumen and CCT technology allows easy field-adjustable capability, luminare ships with maximum output and 4000K CCT setting.
All CCTs are within 3 MacAdam ellipses. Driver operates at 120-277V input, 0-10V dimmable driver, down to 10%. Optional Integral Daylight Harvesting sensor.
Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life.
Greater than 70% LED lumen maintenance at 60,000 hours (L70>60,000). Selectable lumen and CCT technology allows easy field-adjustable capability, luminare ships with maximum output and 4000K CCT setting.
All CCTs are within 3 MacAdam ellipses. Driver operates at 120-277V input, 0-10V dimmable driver, down to 10%. Optional Integral Daylight Harvesting sensor.
MOUNTING
Designed to accommodate lay-in ceilings, Slot T, and T-bar suspension system for 5/8” and 3/8” width.
Built-in earthquake clips come standard. Surface mount applications, use surface mount accessories. Plaster or sheetrock installations, select flange kit.
Hard ceiling application, select hard ceiling kit.
Designed to accommodate lay-in ceilings, Slot T, and T-bar suspension system for 5/8” and 3/8” width.
Built-in earthquake clips come standard. Surface mount applications, use surface mount accessories. Plaster or sheetrock installations, select flange kit.
Hard ceiling application, select hard ceiling kit.
STANDARD FINISH
High Reflective White finish.
CERTIFICATION
Damp location label standard. Meets Buy America Act requirements. Option for “BABAA” compliance upon request.
All luminaires are built to UL1598 standards and bear appropriate cULus labels. For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified)
Damp location label standard. Meets Buy America Act requirements. Option for “BABAA” compliance upon request.
All luminaires are built to UL1598 standards and bear appropriate cULus labels. For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified)
WARRANTY
5-year warranty, see Limited Warranty for additional information.
5-year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
Dimming Range
- 10%
- 5%
Lamp Source
- LED
Listings
- cULus
Materials
- Metal
- Polycarbonate
Mounting
- Ceiling
- Corner
- Cove
- Flange
- Grid
- Surface
- Wall
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- DLC
- Damp
- Dry
- IC
Special Programs
- Quick Ship
Static LED Color
- Blue
- White
Voltage
- 120-277 V
- 347 V
Warranty
- 5 yr
Weight
- 15 lbs
- 16 lbs
- 24 lbs
