WFM
WPM.2-1080P.jpgWFM

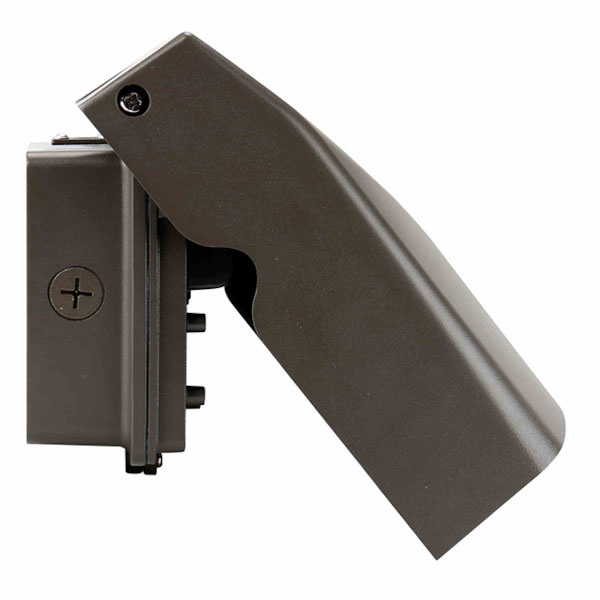

Full Cutoff Wall Pack Tiltable
The WFM is a low-profile wall pack with an architectural style. It features a sleek and modern design with a die-cast aluminum housing that provides excellent thermal management. The acrylic LED optics provide IES Type III distribution, and the light engines have a 70+ CRI. The WFM operates on a 120-277V input and is 0
Resources
CONSTRUCTION
Low profile architectural style wall pack, sleek and modern design, die-cast aluminum housing provides excellent thermal management. Suitable for applications requiring 3G testing prescribed by ANSI C136.31.
OPTICS
Individual acrylic LED optics provide IES Type III distribution.
Light engines available between 4000K, 5000K (70+ CRI)
Selectable CCT light engine available between 3000K~5000K (70+ CRI).
ELECTRICAL
70+ CRI Lumileds LED.
-40°C up to 40°C (-40°F up to 104°F) maximum operating temperature.
>54,000 hr LED at L70.
Driver operates at 120-277V input, 50/60Hz, <20% THD, 0.9 power factor, 1-10V dimmable.
Optional 10kV surge protection.
MOUNTING
Wall mount over electrical box or via surface conduit.
0° to +90° tilt adjustment.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CERTIFICATION
Wet Location Listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Low profile architectural style wall pack, sleek and modern design, die-cast aluminum housing provides excellent thermal management. Suitable for applications requiring 3G testing prescribed by ANSI C136.31.
OPTICS
Individual acrylic LED optics provide IES Type III distribution.
Light engines available between 4000K, 5000K (70+ CRI)
Selectable CCT light engine available between 3000K~5000K (70+ CRI).
ELECTRICAL
70+ CRI Lumileds LED.
-40°C up to 40°C (-40°F up to 104°F) maximum operating temperature.
>54,000 hr LED at L70.
Driver operates at 120-277V input, 50/60Hz, <20% THD, 0.9 power factor, 1-10V dimmable.
Optional 10kV surge protection.
MOUNTING
Wall mount over electrical box or via surface conduit.
0° to +90° tilt adjustment.
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CERTIFICATION
Wet Location Listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
DLC® Premium (DesignLights Consortium Qualified) listed.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
CRI
- 70 CRI
Controls Options
- Photocell
Dimensions
- H: 5 In.
- L: 10 In.
- L: 12 In.
- W: 8 In.
- H: 6 In.
- W: 11 In.
Distribution
- Type III
Efficacy
- 130 lm/w
- 131 lm/w
- 161 lm/w
Lamp Life
- 54000 hrs
Lamp Source
- LED
Listings
- cULus
Lumens
- Lm
- 5200 Lm
- 5400 Lm
- 7800 Lm
- 8800 Lm
- 10100 Lm
- 10500 Lm
- 12200 Lm
Materials
- Acrylic
- Aluminum
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- DLC
- DLC Premium
- Made in America
- Wet
Special Programs
- Quick Ship
Voltage
- 110-277 V
- 120-277 V
- 480 V
Warranty
- 5 yr
Watts
- w
- 32 w
- 40 w
- 48 w
- 64 w
- 67 w
- 80 w
Weight
- 4 lbs
- 8 lbs
