NSF Certified Linear Bay Light

CONSTRUCTION
The NSF rated LED housing is hermetically sealed against moisture and contaminants.
Cast construction with center driver housing for increased durability and thermal control.
Versatile bracket options accommodate various application needs, offering flexible
installation solutions. IP65 wet location listed.

OPTICS
PC Lens features field selectable medium / aisle / narrow distribution.
Optional glass lens features a 120° beam angle and high corrosion resistance.

ELECTRICAL
80+ CRI LED.
-40°C up to 50°C (-40°F up to 122°F) maximum operating temperature.
100,000 hr LEDs, <20% THD, >.9 Power Factor.
Driver operates at 120-277V input, 0-10V dimmable, 10-100% dimming range.
Optional 347/480V input.

SENSORS (OPTIONAL)
SENSOR-ANT-6-4T Plug-N-Play PIR on/off/dimming/photosensing.
SENSOR-BLE-6-4T Plug-N-Play PIR ALS Control Bluetooth/on/off/dimming/photosensing.

MOUNTING

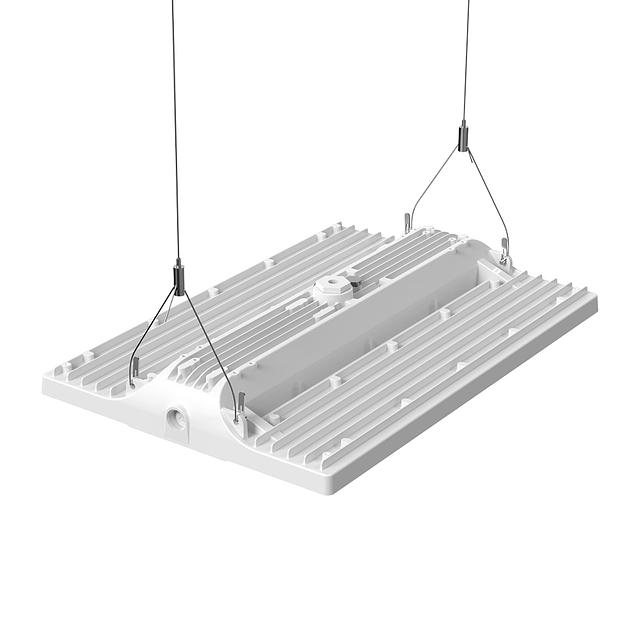

Adjustable aircraft cable hanger as standard mounting included.

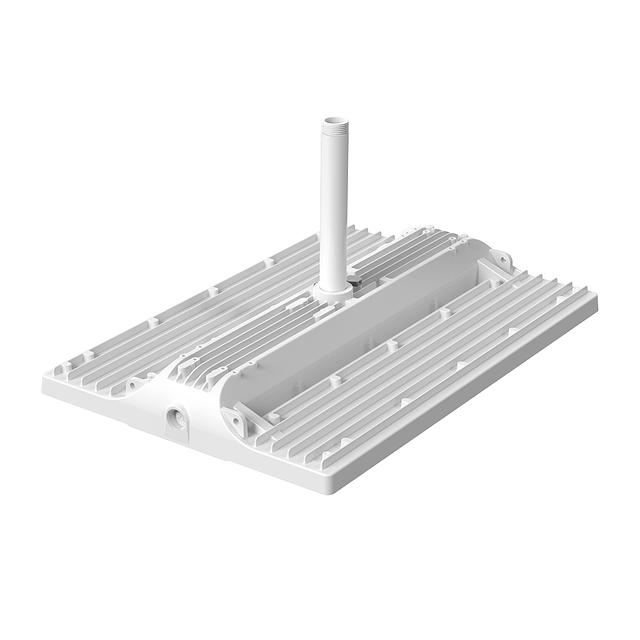

Optional pendant mount - fixture includes standard 3/4” NPT Hub (rod provided by others).

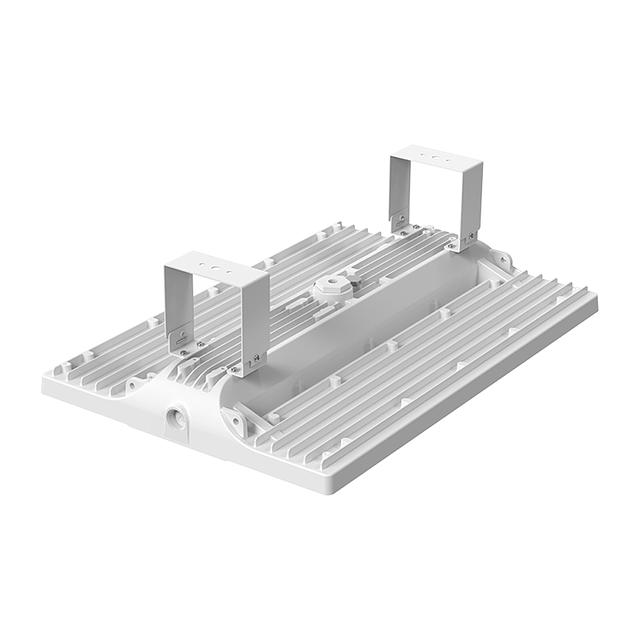

Optional surface mount bracket.

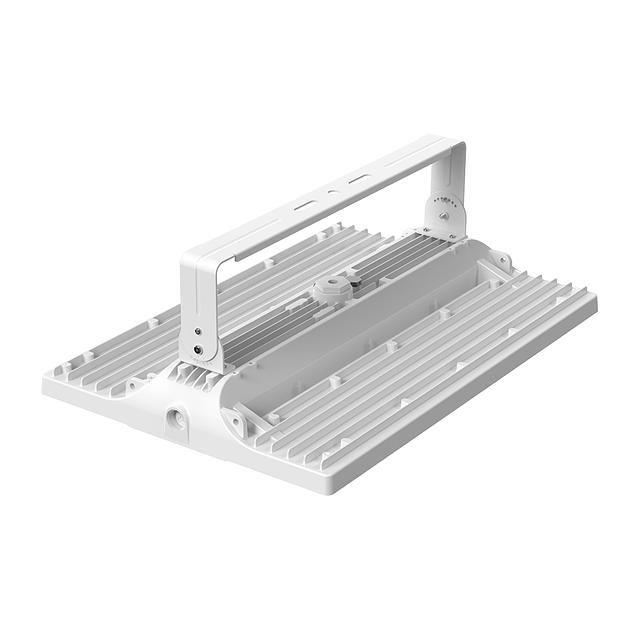

Optional yoke mount.
STANDARD FINISH
White finish standard.

CERTIFICATION
NSF Splash Zone 2 and Non-Food Zone Rated.
Meets Buy America Act requirements.
IP65 Wet Location listed.
IK10 Rated housing.
IK10 Rated PC Lens; IK07 Rated Clear Glass Lens optional.
All luminaires are built to UL1598 standards for damp location and bear appropriate
cULus labels.
For Emergency application, equipment with UL924 certified battery packs.

WARRANTY
5 year warranty, see Limited Warranty for additional information.
