New Product
Architectural Emergency Light
Compact and durable emergency LED luminaire with 15° tiltable modules, 1200LM output, and long-life battery. Suitable for recessed or optional surface mounting, UL- and NFPA-compliant, with a 5-year warranty.
Resources
CONSTRUCTION
Constructed from injection-molded rectangular face plate and trim.
Industrial-grade material, 5VA flame retardant thermoplastic.
OPTICS
2 x 15° Tiltable ultra bright LED module.
ELECTRICAL
CRI 70 Static 5000K CCT
1200lm Output, 2 x 3W LED module (170lm/W), total 7W consumption.
120-277V input.
LiFePO4 6.4V 4000mAh battery, 24hr for full charge at initial use or on depleted battery.
0°C up to 50°C (32°F up to 122°F) maximum operating temperature.
Designed for an expected life of 100,000 hours.
Optional Self-Diagnostic battery.
MOUNTING

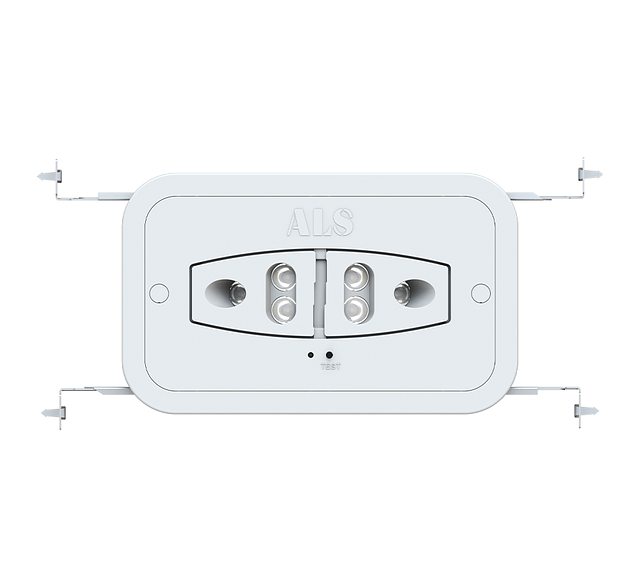

Suitable for Recessed mount to drywall, drop ceiling.

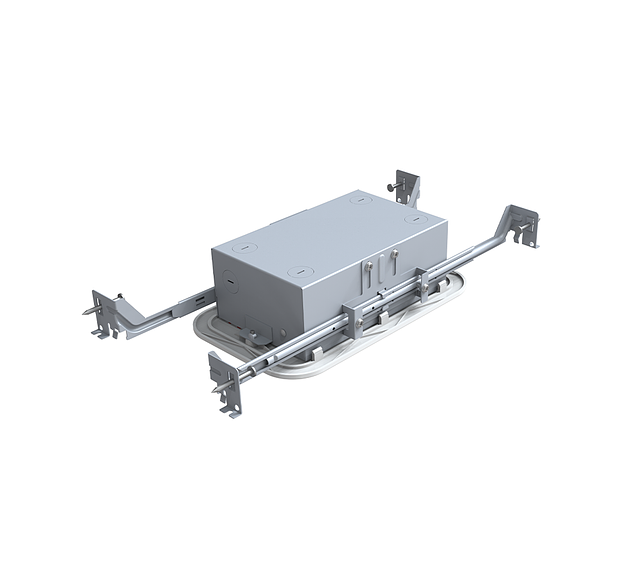

Optional Surface mount enclosure with 4-side 1/2 conduit entires.
STANDARD FINISH
White Finish
CERTIFICATION
UL-94V-0 Flame Rating.
NFPA 101 Life Safety Code approved.
All luminaires are built to UL924 standards and bear appropriate cETLus labels.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Constructed from injection-molded rectangular face plate and trim.
Industrial-grade material, 5VA flame retardant thermoplastic.
OPTICS
2 x 15° Tiltable ultra bright LED module.
ELECTRICAL
CRI 70 Static 5000K CCT
1200lm Output, 2 x 3W LED module (170lm/W), total 7W consumption.
120-277V input.
LiFePO4 6.4V 4000mAh battery, 24hr for full charge at initial use or on depleted battery.
0°C up to 50°C (32°F up to 122°F) maximum operating temperature.
Designed for an expected life of 100,000 hours.
Optional Self-Diagnostic battery.
MOUNTING
Suitable for Recessed mount to drywall, drop ceiling.
Optional Surface mount enclosure with 4-side 1/2 conduit entires.
STANDARD FINISH
White Finish
CERTIFICATION
UL-94V-0 Flame Rating.
NFPA 101 Life Safety Code approved.
All luminaires are built to UL924 standards and bear appropriate cETLus labels.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
CRI
- 70 CRI
Color / Finish
- White
Emergency Options
- Integral EM Battery
Lamp Source
- LED
Listings
- cETLus
Lumens
- 1200 Lm
Materials
- Thermoplastic
Mounting
- Recessed
- Surface
Ratings & Compliance
- NFPA 101
Shape
- Rectangular
Special Programs
- Quick Ship
Warranty
- 5 yr
Watts
- 7 w
