STR
SENSOR-USS-CMP308_1K.jpgSTR
New Product
Linear Stairwell Fixture w/Ultrasonic Sensor
The high-performing STR Stairwell luminaire comes in two sizes that is ideal for stairwells and other general ambient lighting applications. CCT / Output Selectable, standard w/Ultrasonic sensor to detect motion that does not require a direct line of sight. This luminaire is optically engineered for maximum efficacy and optimal light distribution with excellent uniformity. This luminaire is suitable for vertical and horizontal mounting and provides easy installation and long life. Emergency Battery available.
Resources
CONSTRUCTION
Precision-formed 22-gauge stamped sheet metal housing with reinforced bends for added rigidity. Seam-welded ends and a corrosion-resistant powder coat
ensure structural strength and long-term durability.
OPTICS
End-to-end U-shaped frosted polycarbonate (PC) lens standard.
ELECTRICAL
Delivered 150lm/W efficacy LEDs offer 80+ color rendering index (CRI), L70 >100,000 hours expected life.
-40°C up to 50°C (-40°F up to 122°F) maximum operating temperature.
Selectable lumen and CCT technology allows easy field-adjustable capability.
Luminaire ships with maximum output and 4000K CCT setting.
Driver operates at 120-277V input, 0-10V dim-to-off driver.
SENSORS (OPTIONAL)

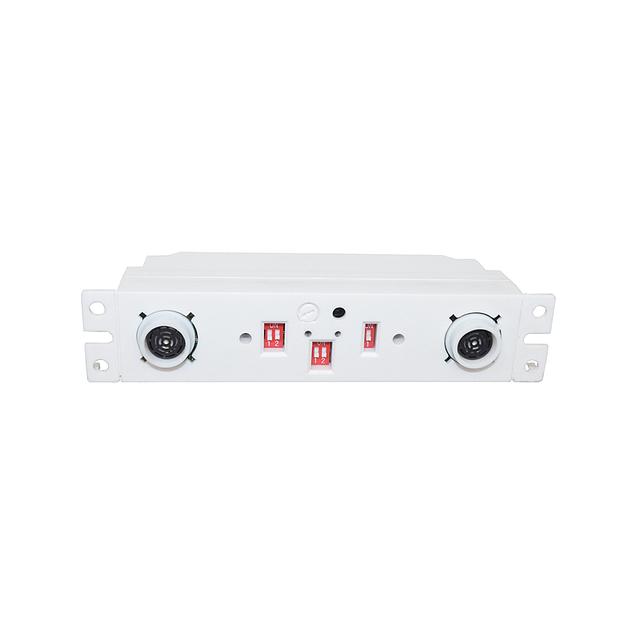

Built-in Failed-On Ultrasonic sensor (Part# SENSOR-USS-CMP308).
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
MOUNTING
Designed for wall / surface mount application over electrical box.
STANDARD FINISH
Corrosion resistant semi-gloss White finish, suitable for damp location.
CERTIFICATION
Damp location label standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Standard (DesignLights Consortium Qualified).
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Precision-formed 22-gauge stamped sheet metal housing with reinforced bends for added rigidity. Seam-welded ends and a corrosion-resistant powder coat
ensure structural strength and long-term durability.
OPTICS
End-to-end U-shaped frosted polycarbonate (PC) lens standard.
ELECTRICAL
Delivered 150lm/W efficacy LEDs offer 80+ color rendering index (CRI), L70 >100,000 hours expected life.
-40°C up to 50°C (-40°F up to 122°F) maximum operating temperature.
Selectable lumen and CCT technology allows easy field-adjustable capability.
Luminaire ships with maximum output and 4000K CCT setting.
Driver operates at 120-277V input, 0-10V dim-to-off driver.
SENSORS (OPTIONAL)
Built-in Failed-On Ultrasonic sensor (Part# SENSOR-USS-CMP308).
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
MOUNTING
Designed for wall / surface mount application over electrical box.
STANDARD FINISH
Corrosion resistant semi-gloss White finish, suitable for damp location.
CERTIFICATION
Damp location label standard.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Standard (DesignLights Consortium Qualified).
WARRANTY
5 year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- White
Dimensions
- H: 5 In. L: 24 In. W: 6 In.
- H: 5 In. L: 48 In. W: 6 In.
Dimming Protocol
- 0-10 V
Efficacy
- 150 lm/w
Emergency Options
- Integral EM Battery
Lamp Life
- 100000 hrs
Listings
- cULus
Lumens
- 3900 Lm
- 8000 Lm
Materials
- Aluminum
- Polycarbonate
Mounting
- Wall
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- Damp
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 26 w
- 53 w
