New Product
Architectural Bollard
 A durable, weather-resistant lighting solution for pathways, driveways, and landscapes. Equipped with a CCT-selectable and output-selectable light engine, its glare-free optics deliver bright, uniform illumination with minimal power consumption. The sleek, modern design and corrosion-resistant construction ensure long-lasting performance while enhancing both safety and curb appeal.Â
Resources
CONSTRUCTION
Low profile extruded aluminum shaft with thick side walls for excellent durability, Features a sleek, modern design and carefully engineered to provide long-lasting, energy-efficient

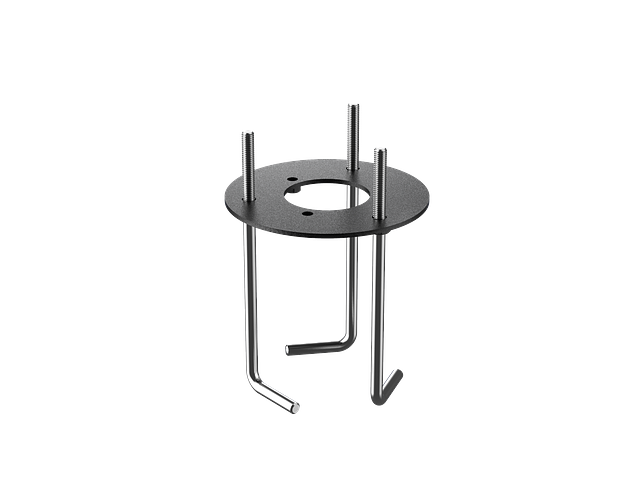

lighting. Die-cast aluminum mounting base allows for easy leveling even in sloped locations and a full 360-degree rotation for precise alignment during installation.
OPTICS
Polycarbonate lens offer glare-free uniform illumination.
Efficacy at 110 lm/W.
ELECTRICAL
80+ CRI.
-30°C up to 45°C (-22°F up to 113°F) maximum operating temperature.
Designed for an expected life >50,000 hours.
L90 57,000 hours, L80 150,000 hours, L70 236,000 hours, Ta = 25°C.
CCT selectable light engine 3000K ~ 5000K.
Driver operates at 120-277V, 50/60 Hz 1-10V dimmable driver, down to 10%.
>.9 power factor, 6kV line-line surge protection standard. Optional 10kV surge protection.
CONTROL (OPTIONAL)
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
STANDARD FINISH
Corrosion resistant Black powder coating finish.
CUSTOM FINISH
Corrosion resistant Dark Bronze, Graphite Metallic, Gray, Silver, White, Custom RAL#
CERTIFICATION
Meets Buy America Act requirements.
IP66 Wet location label listed.
IK10 rated.
Category of corrosion - C3.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
Low profile extruded aluminum shaft with thick side walls for excellent durability, Features a sleek, modern design and carefully engineered to provide long-lasting, energy-efficient
lighting. Die-cast aluminum mounting base allows for easy leveling even in sloped locations and a full 360-degree rotation for precise alignment during installation.
OPTICS
Polycarbonate lens offer glare-free uniform illumination.
Efficacy at 110 lm/W.
ELECTRICAL
80+ CRI.
-30°C up to 45°C (-22°F up to 113°F) maximum operating temperature.
Designed for an expected life >50,000 hours.
L90 57,000 hours, L80 150,000 hours, L70 236,000 hours, Ta = 25°C.
CCT selectable light engine 3000K ~ 5000K.
Driver operates at 120-277V, 50/60 Hz 1-10V dimmable driver, down to 10%.
>.9 power factor, 6kV line-line surge protection standard. Optional 10kV surge protection.
CONTROL (OPTIONAL)
CONTROL-LVFA AVI-ON Bluetooth Mesh Controller.
STANDARD FINISH
Corrosion resistant Black powder coating finish.
CUSTOM FINISH
Corrosion resistant Dark Bronze, Graphite Metallic, Gray, Silver, White, Custom RAL#
CERTIFICATION
Meets Buy America Act requirements.
IP66 Wet location label listed.
IK10 rated.
Category of corrosion - C3.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
WARRANTY
5 year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Black
Dimensions
- H: 49 In. L: 9 In. W: 9 In.
Dimming Protocol
- 0-10 V
Efficacy
- 110 lm/w
Emergency Options
- Integral EM Battery
Integrated Brands
- Avi-on
Lamp Life
- 150000 hrs
Listings
- cETLus
Lumens
- 726 Lm
- 1210 Lm
- 1815 Lm
- 2420 Lm
Materials
- Aluminum
- Polycarbonate
Ratings & Compliance
- Buy American Act (BAA)
- IK10
- IP66
- Wet
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 6.6 w
- 11 w
- 16.5 w
- 22 w
Weight
- 18 lbs
