Surface Mount Round Panel Gen 3 - 120-277V 0-10V Dimming

CONSTRUCTION
Offered in 5”, 7”, 9”, 11”, and 13” sizes, the fixture features a robust die-cast
aluminum trim designed for surface mounting. Engineered for secure installation
to standard junction boxes with enhanced durability and heat dissipation.

OPTICS
Edgelit panel, durable PMMA lens, gasketed and sealed prevent splash of water
or dust object from entry.

ELECTRICAL
90+ CRI.
120V-277V Input, 0-10V Dimming
5 CCT selectable light engine 2700~5000K.
Greater than 70% LED lumen maintenance at 50,000 hours.
-20°C up to 45°C (-4°F up to 113°F) maximum operating temperature.

MOUNTING
New Construction: Surface Mount to standard depth 2.75” or 3.5” J-box.

STANDARD FINISH
Corrosion resistant White finish, suitable for wet locations.

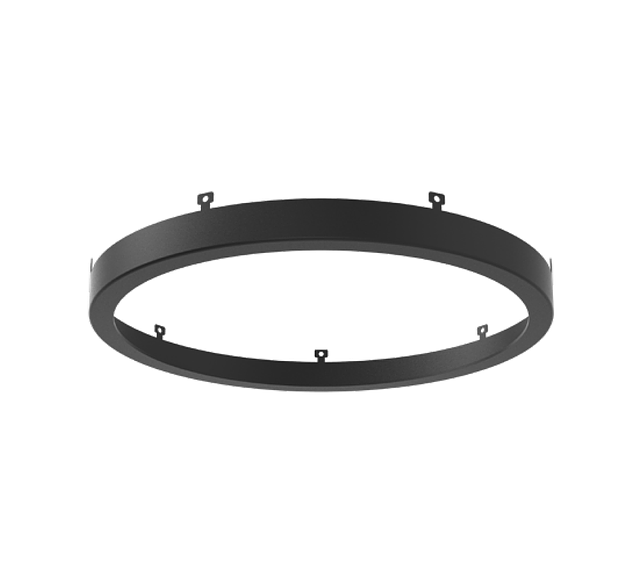

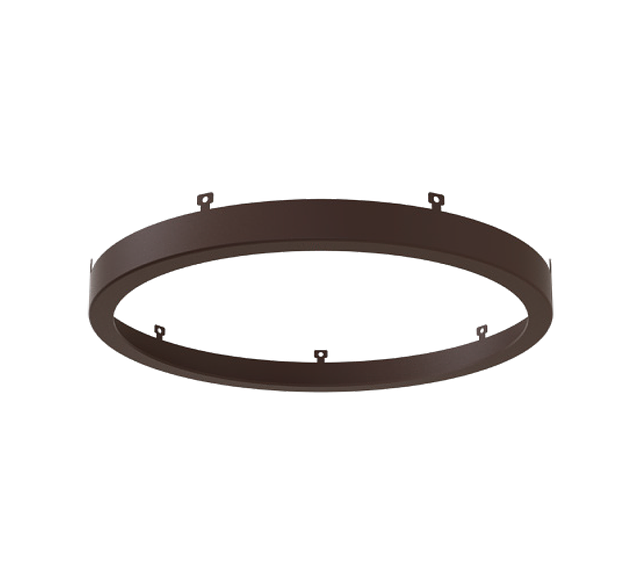

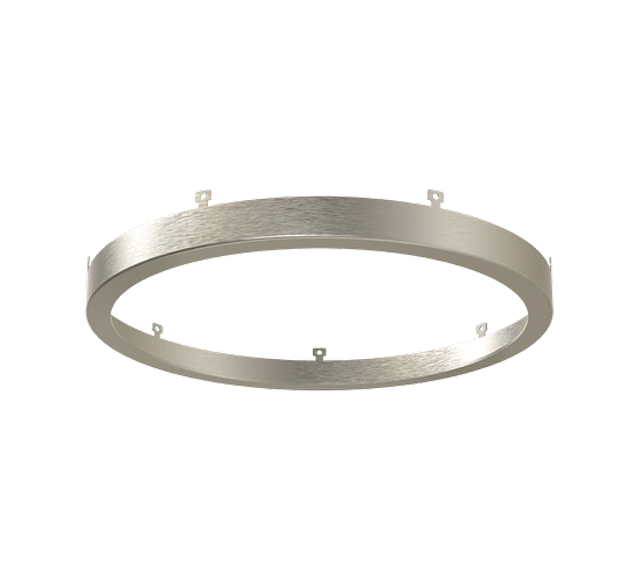

Decorative trim rings available in Brushed Nickel, Black, and Bronze.

CERTIFICATION
IP44 Wet location listed.
Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cETLus labels.
Title 24 JA8 compliant; see local ordinance for qualification information.

WARRANTY
5 year warranty, see Limited Warranty for additional information.
